Brackish Water RO System
♦ Main Application:
High-efficiency BWRO system engineered for moderate salinity treatment, delivering stable, cost-effective freshwater for industrial, agricultural, and municipal use.

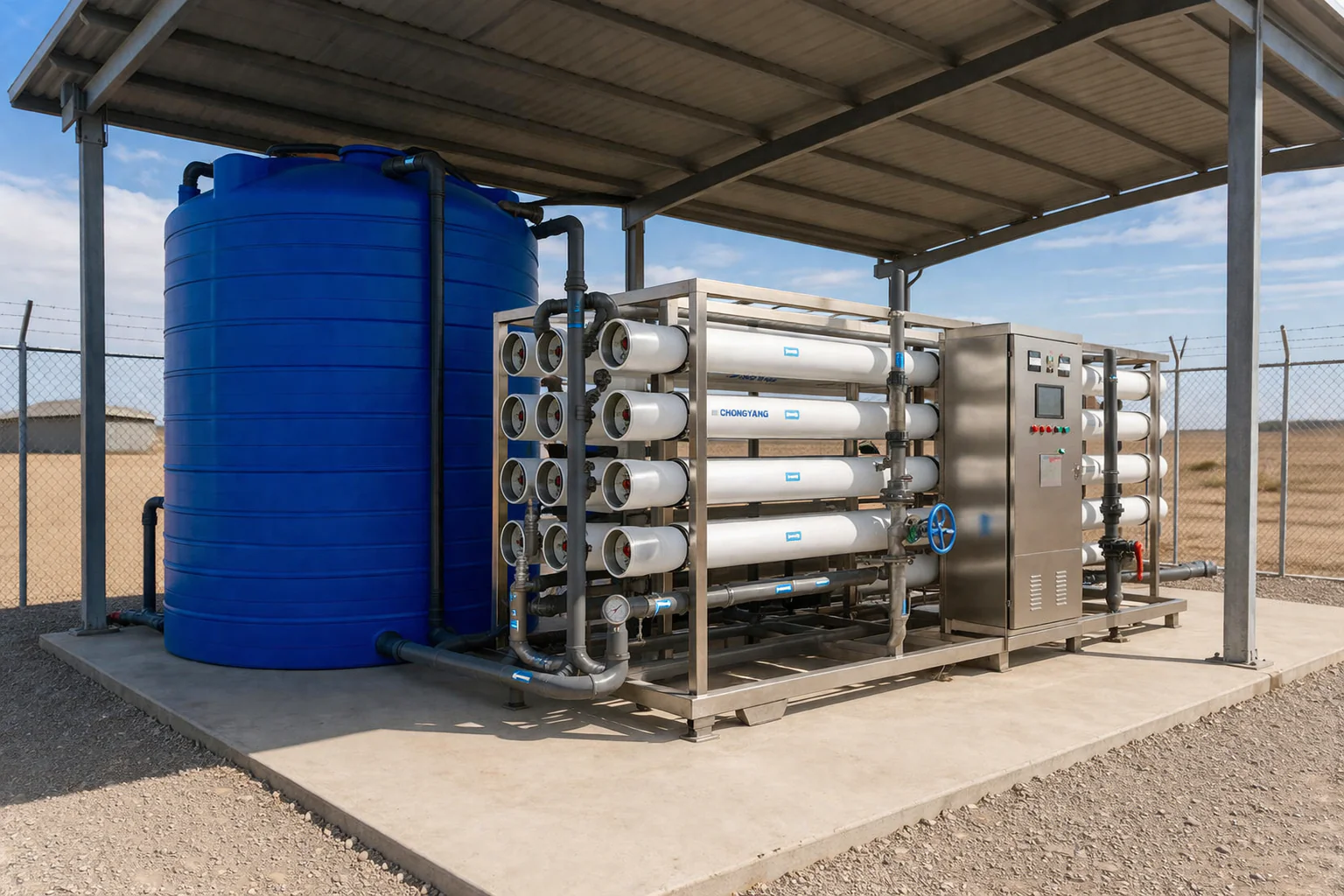

Brackish Water Reverse Osmosis (BWRO) System
A Brackish Water Reverse Osmosis (BWRO) System is an advanced membrane water treatment solution designed to remove dissolved salts, minerals, organic contaminants, and impurities from brackish water sources.
CHONGYANG WATER provides customized BWRO systems for industrial manufacturing, mining, agriculture, municipal water supply, food processing, power plants, hotels, resorts, and remote communities.
What Is a BWRO System?
A BWRO system treats water with moderate salinity, usually 1,000–15,000 ppm TDS. Compared with seawater desalination, BWRO operates at lower pressure, reducing energy consumption and operating cost.
- Dissolved salts and TDS
- Heavy metals
- Organic contaminants
- Bacteria and viruses
- Suspended solids
- Harmful minerals
Technical Specifications
Product Water Quality
| Parameter | Typical Value |
|---|---|
| Feed Water TDS | 1,000 – 15,000 ppm |
| Product Water TDS | < 100 ppm |
| Salt Rejection | ≥ 98% |
| Turbidity | < 0.5 NTU |
| Bacteria Removal | > 99.99% |
| Virus Removal | > 99.9% |
| Recovery Rate | 65% – 85% |
| Water Quality | Drinking / Process Water |
System Specifications
| Parameter | Specification |
|---|---|
| Capacity Range | 500 L/H – 500 m³/h |
| Feed Water Source | Brackish Groundwater / Surface Water |
| RO Membrane Type | BWRO Membrane |
| Operating Pressure | 8 – 25 Bar |
| Pretreatment | MMF + ACF + Softener |
| Recovery Rate | Up to 85% |
| Control System | PLC + HMI |
| Installation Type | Skid Mounted / Containerized |
Features & Advantages
Application Industries
Production Process
This process effectively removes dissolved salts and impurities while maintaining high recovery and operational efficiency.
Looking for a Reliable BWRO Water Treatment System?
CHONGYANG WATER provides complete brackish water reverse osmosis solutions for municipalities, industrial facilities, agriculture projects, mining operations, hotels, resorts, and remote communities.
Contact our engineering team to receive feed water analysis, customized process design, recovery rate optimization, P&ID drawings, layout drawings, technical proposals, and competitive quotations.
