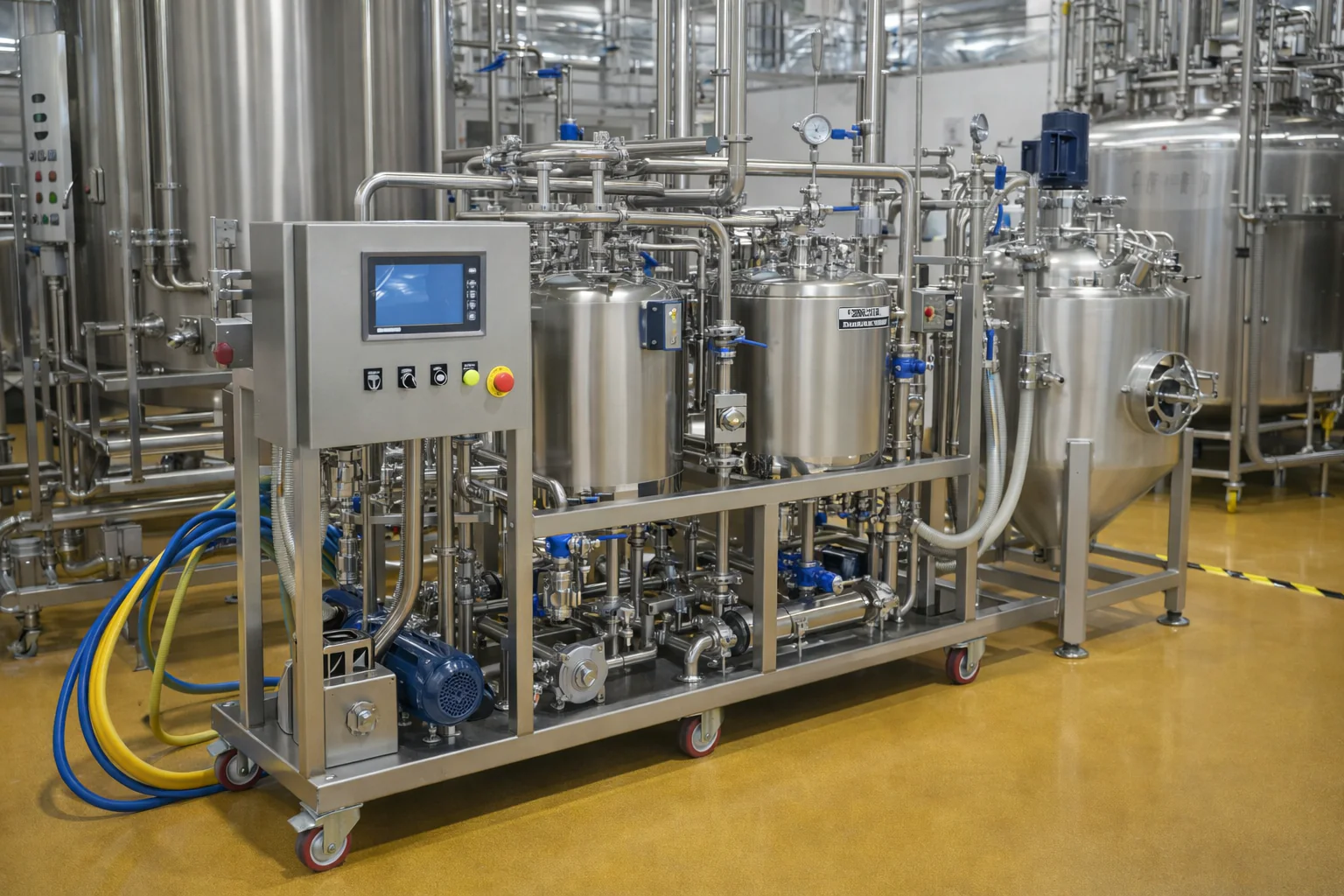

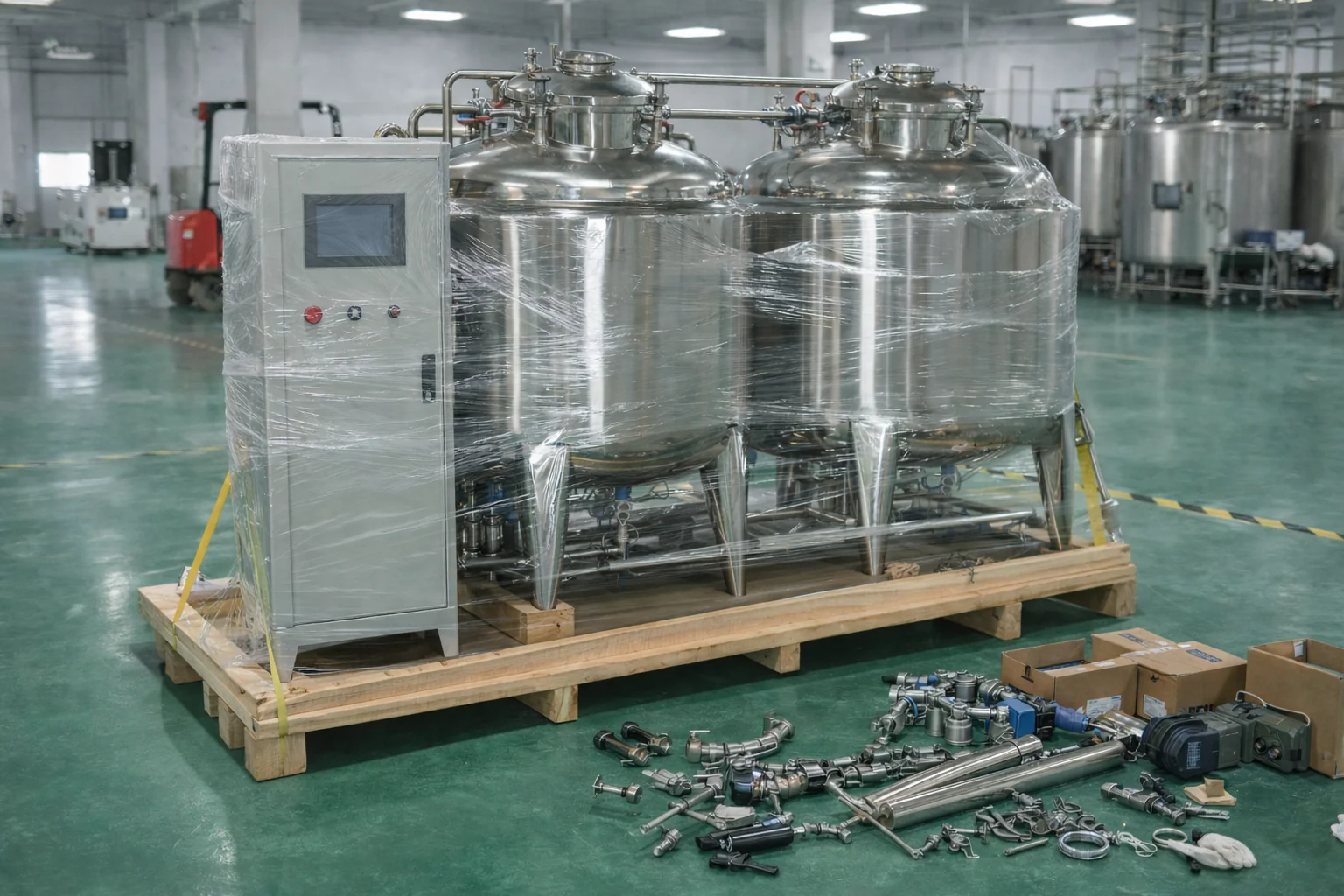

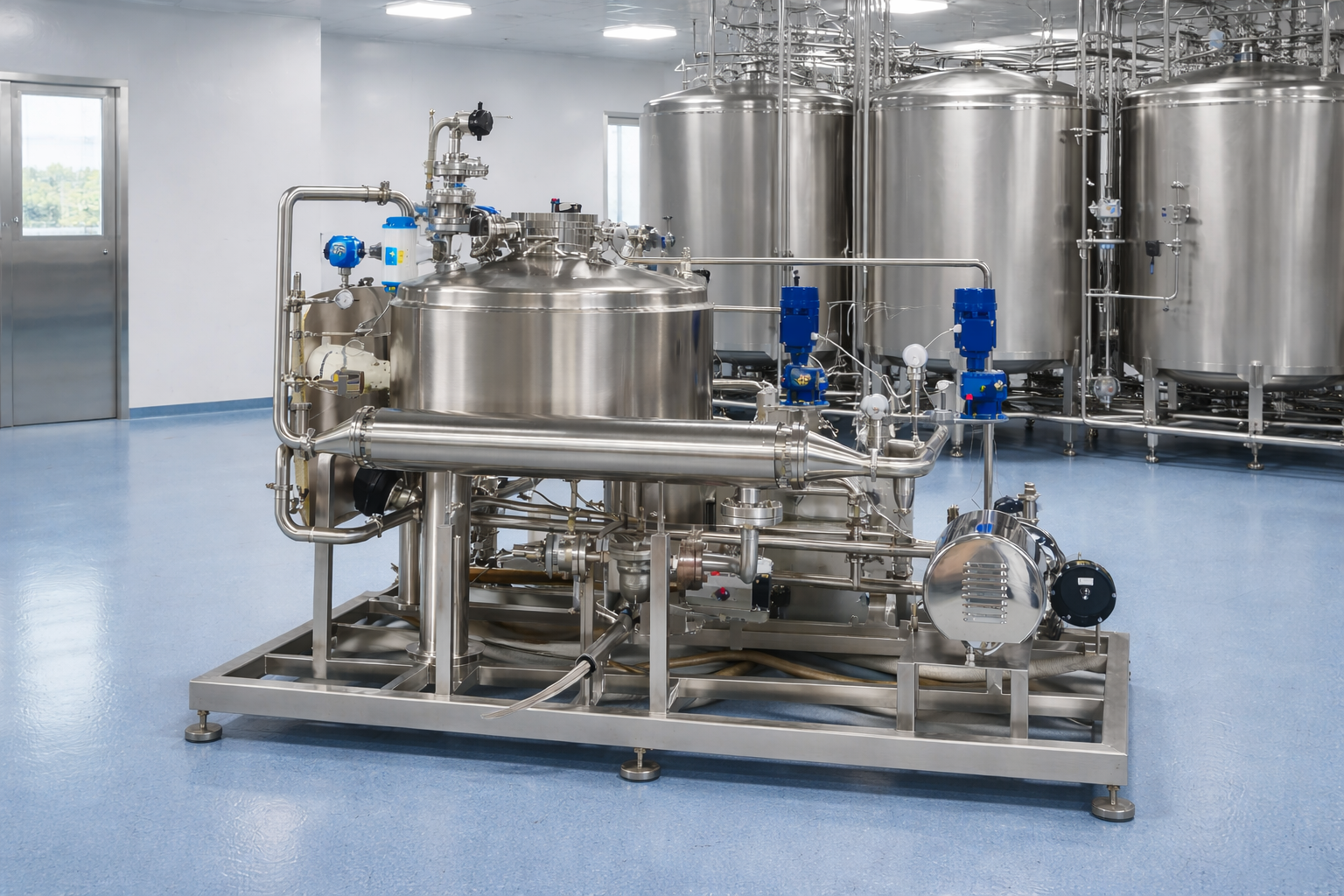

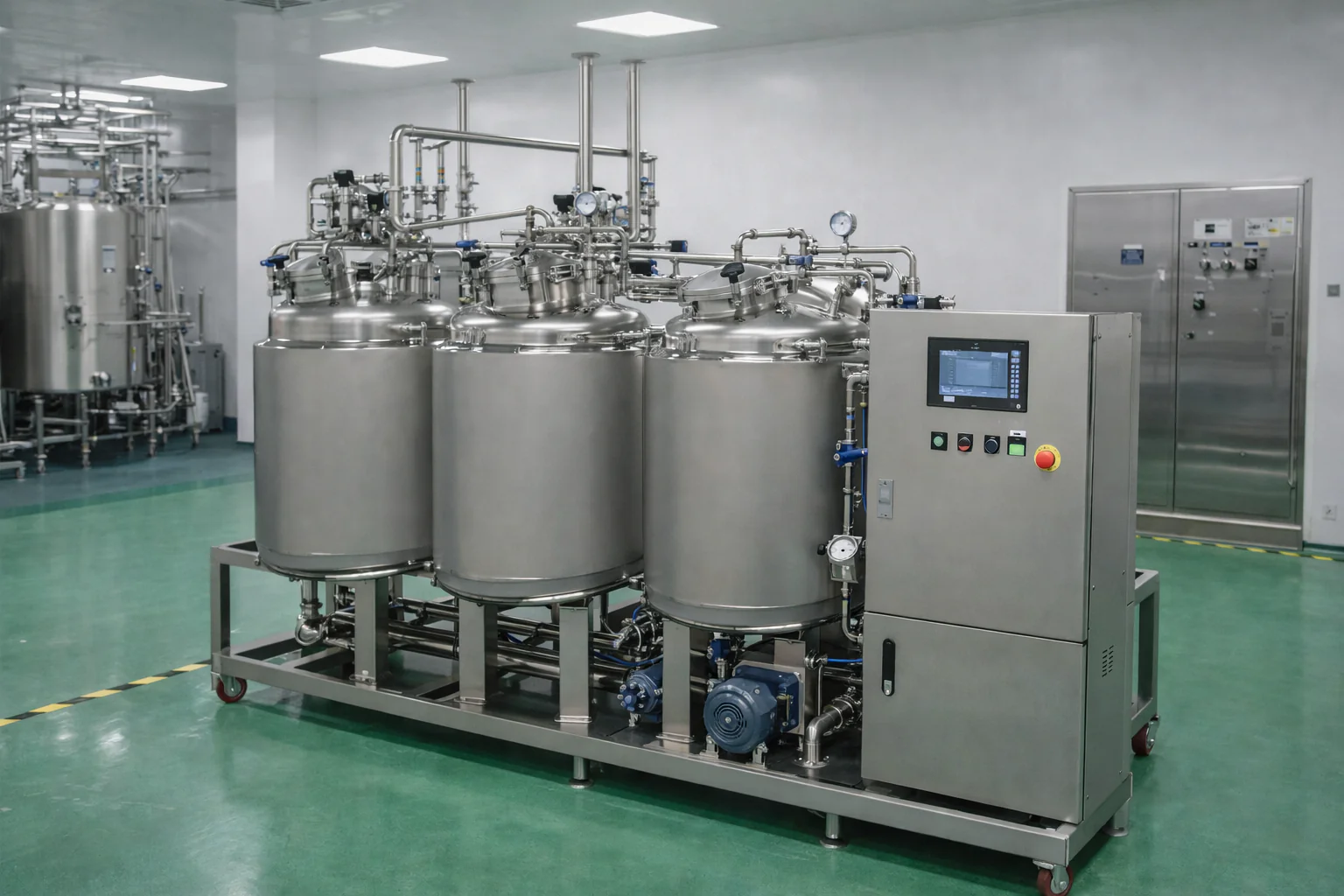

CIP & SIP System
♦ Main Application:
CIP & SIP system engineered for automated cleaning and sterilization without dismantling, ensuring GMP compliance, consistent hygiene control, and reliable sterile production processes.
CIP & SIP System (Cleaning & Sterilization System)
A CIP & SIP System is used to automatically clean and sterilize process equipment, tanks, piping systems, filters, heat exchangers, filling lines, and liquid preparation systems without disassembly.
It is widely used in pharmaceutical, biotechnology, vaccine, food, dairy, cosmetic, and healthcare manufacturing facilities to improve hygiene, reduce contamination risks, and support GMP production.
What Is a CIP & SIP System?
CIP means Cleaning-in-Place. It circulates cleaning solutions through equipment and piping systems without dismantling the equipment.
SIP means Sterilization-in-Place. It uses pure steam to sterilize tanks, pipelines, filters, and production equipment after cleaning.
- CIP Solution Tanks
- Caustic Tank
- Acid Tank
- Rinse Water Tank
- CIP Supply Pump
- Heat Exchanger
- Pure Steam Supply System
- PLC Control System
- Automatic Recipe Management
Technical Specifications
CIP System Specifications
| Parameter | Typical Specification |
|---|---|
| Number of Tanks | 1–5 Tanks |
| Cleaning Temperature | 25–85°C |
| Cleaning Flow Rate | Customized |
| Cleaning Agent | NaOH / Acid |
| Tank Material | SS316L |
| Surface Finish | Ra ≤ 0.6 μm |
| Control System | PLC + HMI |
| Automation Level | Fully Automatic |
SIP System Specifications
| Parameter | Typical Specification |
|---|---|
| Sterilization Medium | Pure Steam |
| Sterilization Temperature | 121°C – 135°C |
| Holding Time | 20–60 Minutes |
| Steam Quality | Pure Steam |
| Condensate Quality | WFI Quality |
| Compliance | GMP / FDA / EN285 |
Features & Advantages
Application Industries
Production Process
CIP Cleaning Process Flow
SIP Sterilization Process Flow
Why Choose CHONGYANG WATER?
- GMP-compliant design
- SS316L electropolished construction
- Automatic orbital welding
- Advanced PLC automation
- Customized process design
- FAT / SAT support
- IQ / OQ / PQ documentation support
- Complete validation assistance
- Global installation guidance
- Long-term technical support
Looking for a Reliable CIP & SIP System?
CHONGYANG WATER provides customized Cleaning-in-Place and Sterilization-in-Place systems for pharmaceutical, biotechnology, food, dairy, cosmetic, and healthcare manufacturing facilities.
Our engineering team can provide customized process design, cleaning validation support, utility consumption calculation, P&ID drawings, layout drawings, technical proposals, and competitive quotations.
