Laboratory & Hospital (RO + EDI)
♦ Main Application:
Compact RO + EDI purified water system designed for laboratories, hospitals, and mid-scale applications, providing stable high-purity water with space-saving design and easy operation.

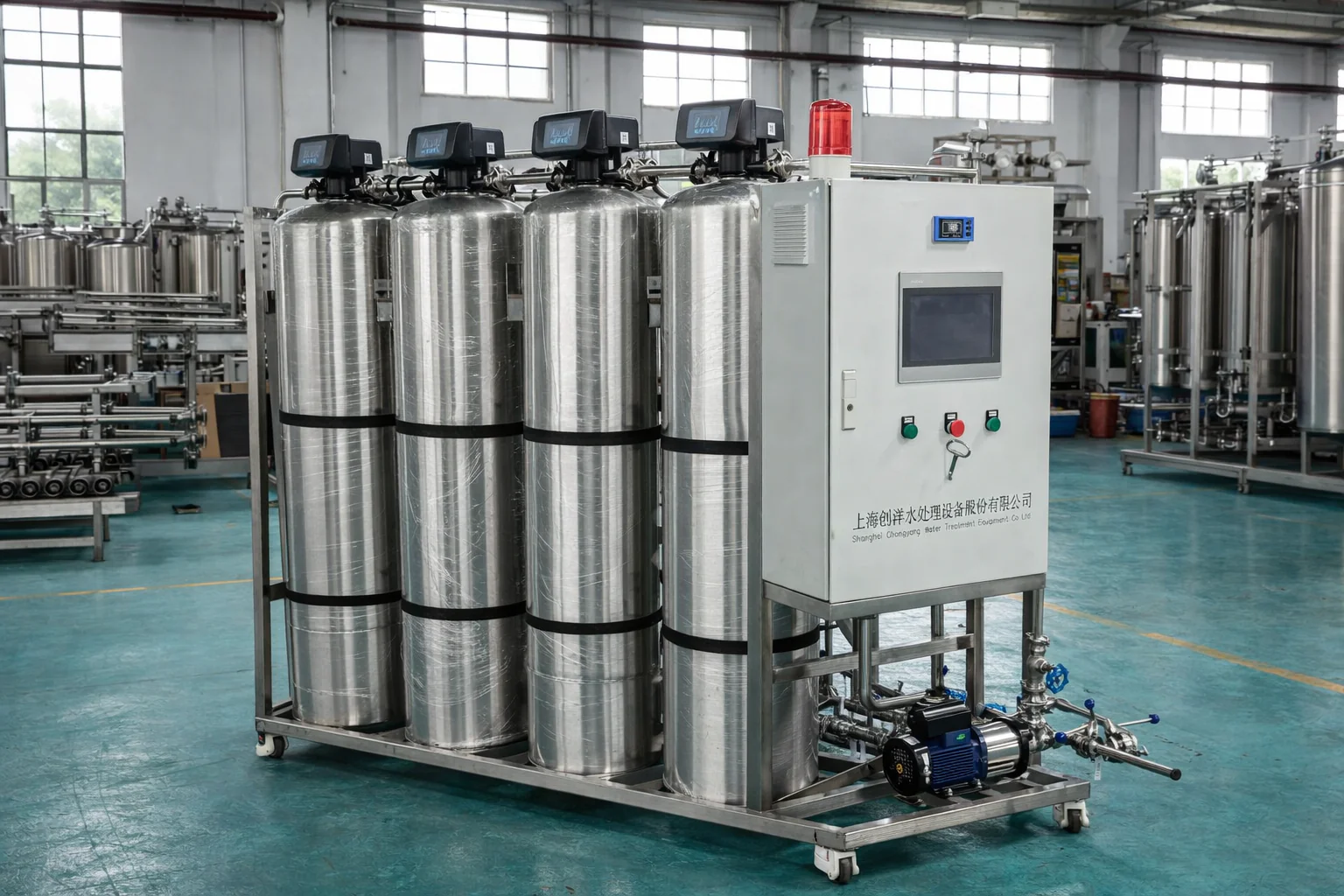

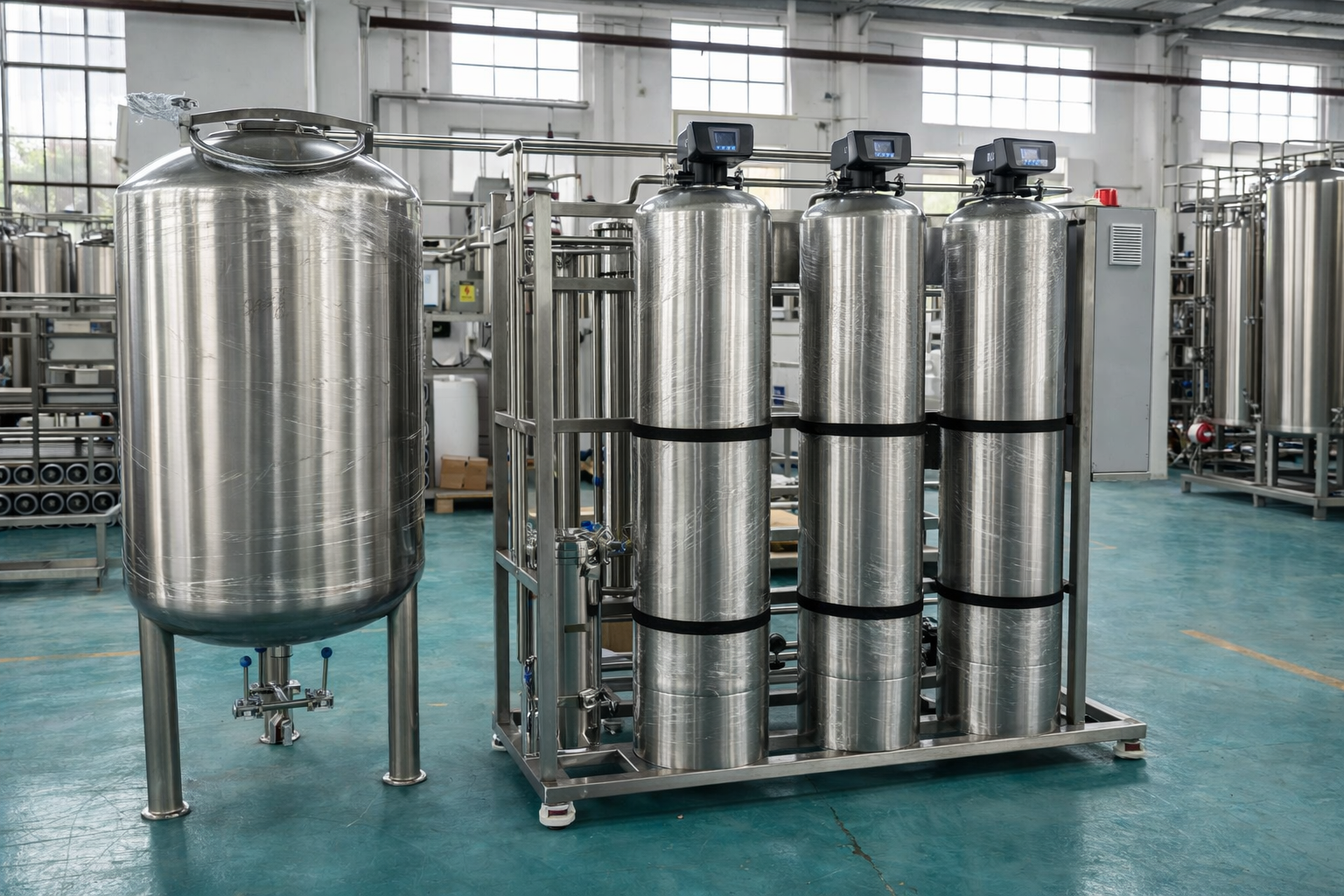

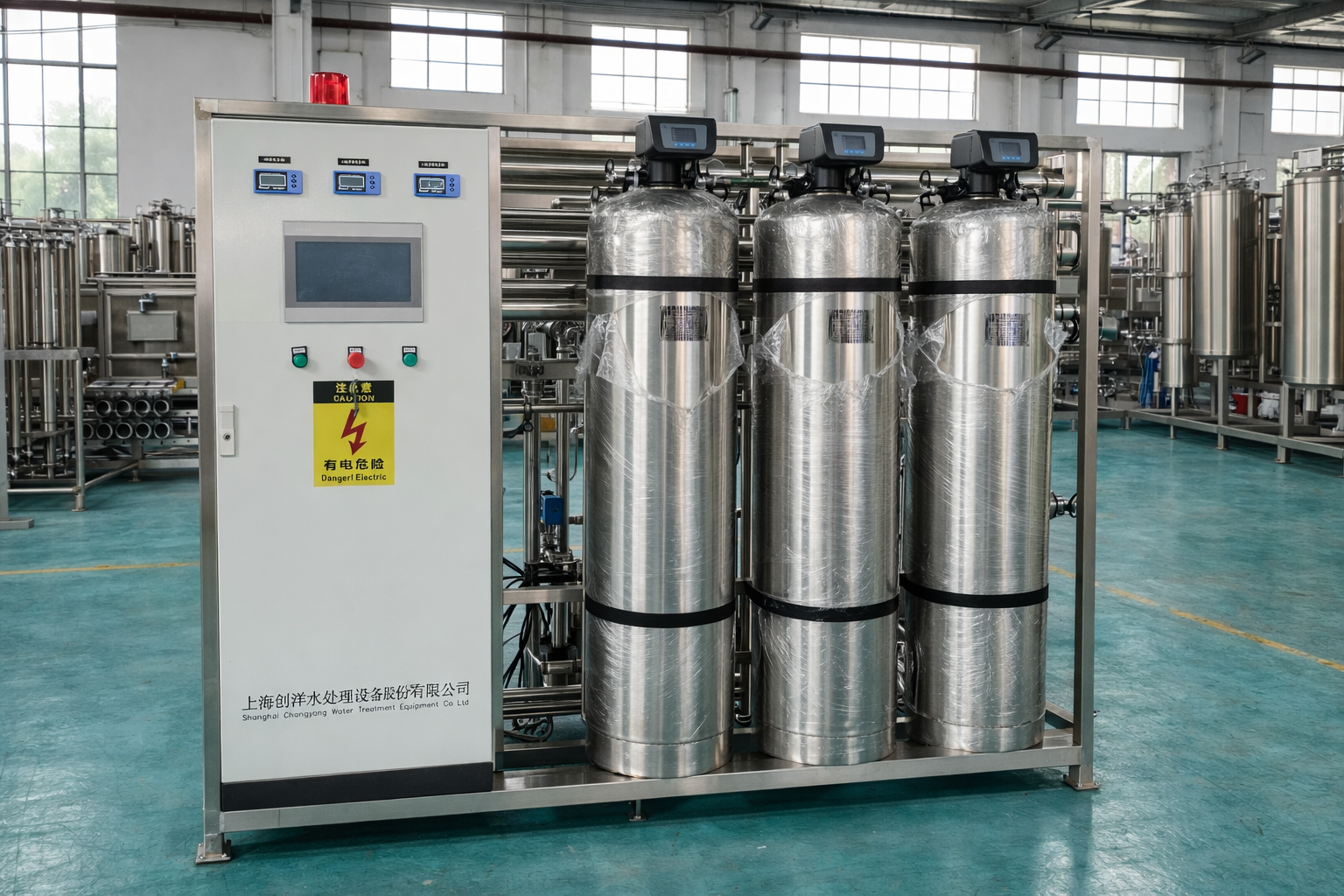

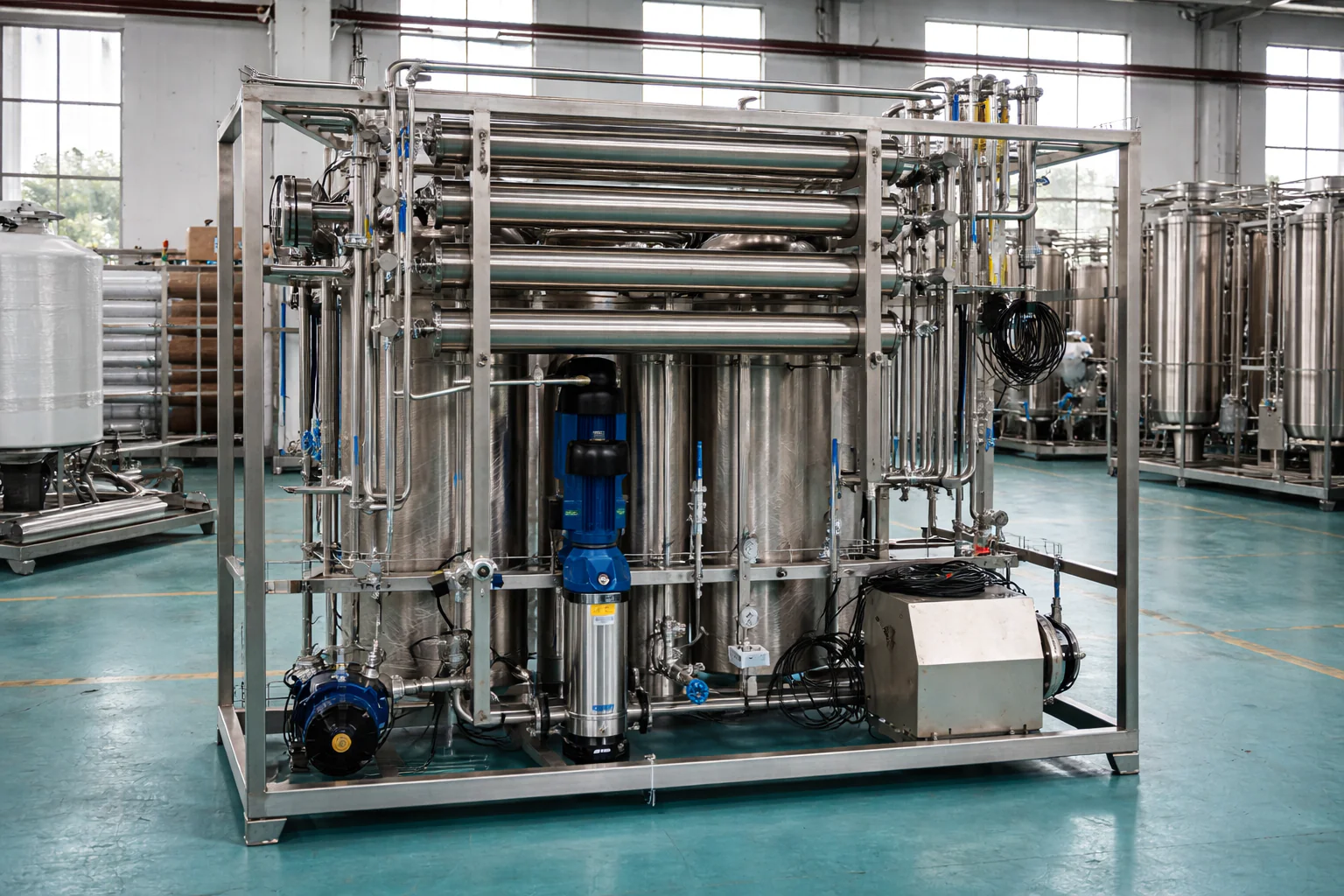

Laboratory & Hospital Purified Water System (RO + EDI)
The Laboratory & Hospital Purified Water System is a compact, fully automated RO + EDI water purification solution for universities, research institutes, hospital laboratories, pharmaceutical QC departments, testing centers, and analytical laboratories.
By integrating reverse osmosis and electro deionization technologies, the system continuously produces stable purified water with low conductivity, high resistivity, compact footprint, and chemical-free operation.
What Is a Laboratory & Hospital Purified Water System?
This compact water treatment system is engineered to produce laboratory-grade purified water from municipal water supplies. The RO + EDI process removes dissolved salts, organic contaminants, bacteria, chlorine, and heavy metals through multiple purification barriers.
- HPLC / GC / ICP analysis
- UV spectrophotometers
- Reagent preparation
- Microbiology laboratories
- Pharmaceutical QC testing
- Hospital diagnostic laboratories
- Scientific research applications
Technical Specifications
Water Quality Specifications
| Parameter | Typical Value |
|---|---|
| Conductivity | ≤ 1.0 μS/cm |
| Resistivity | Up to 15 MΩ·cm |
| TOC | ≤ 500 ppb |
| Hardness | Not Detectable |
| Chlorine | Not Detectable |
| Water Quality | Laboratory Purified Water |
System Capacity Models
| Model | Production Capacity |
|---|---|
| CY-LW-150 | 150 L/H |
| CY-LW-200 | 200 L/H |
| CY-LW-250 | 250 L/H |
| CY-LW-300 | 300 L/H |
| CY-LW-400 | 400 L/H |
| CY-LW-500 | 500 L/H |
Equipment Specifications
| Parameter | Specification |
|---|---|
| Feed Water | Municipal Water |
| Pretreatment | MMF + ACF + Softener |
| RO Configuration | Single Pass RO |
| EDI Module | Continuous Deionization |
| UV Sterilization | 254 nm |
| Storage Tank | 100–500 L |
| Control System | PLC + Touch Screen |
| Installation Type | Compact Skid Mounted |
| Recovery Rate | 60–75% |
Features & Advantages
Application Industries
Production Process
This multi-stage purification process ensures stable laboratory-grade water quality while minimizing operating costs.
Why Choose CHONGYANG WATER?
- Advanced RO + EDI technology
- Compact laboratory design
- Fully automatic PLC control
- Stable water quality
- Low operating cost
- Fast installation and commissioning
- Customized capacity solutions
- Technical documentation support
- Global technical service
- Competitive factory pricing
Looking for a Reliable Laboratory Purified Water System?
CHONGYANG WATER provides compact RO + EDI purified water systems with capacities ranging from 150 L/H to 500 L/H for universities, hospitals, pharmaceutical laboratories, research institutes, and testing centers.
Our engineering team can provide customized system design, water quality evaluation, utility requirement analysis, P&ID drawings, layout drawings, technical proposals, and competitive quotations.
