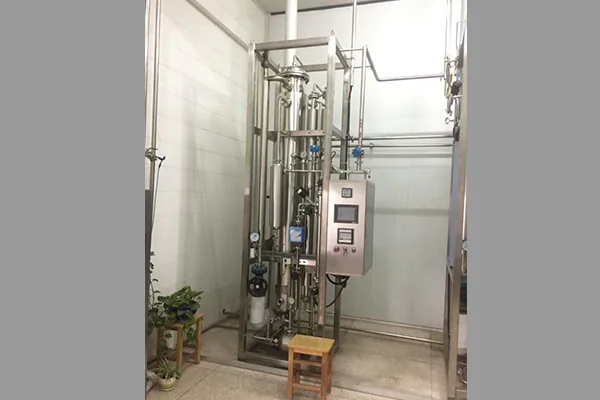

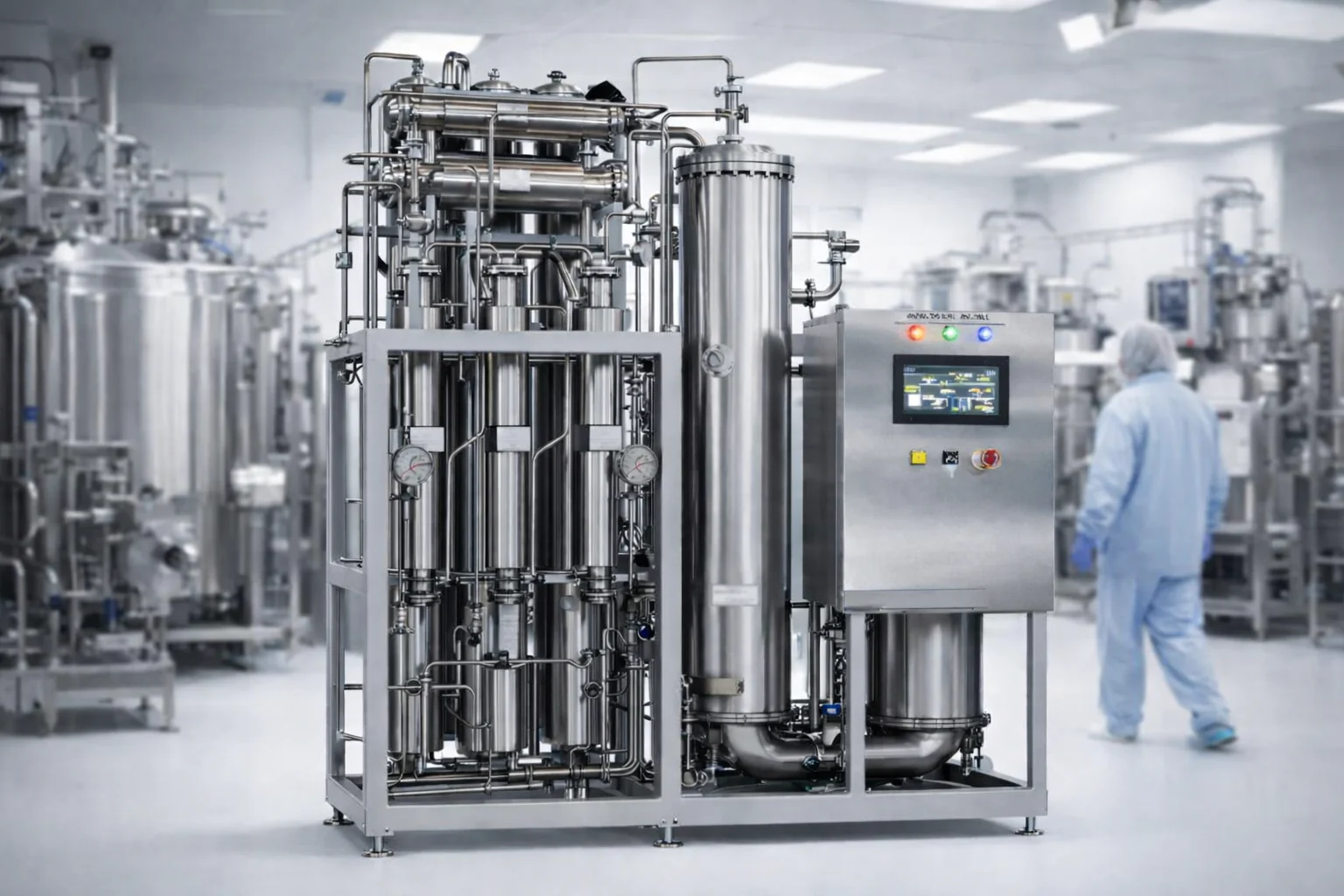

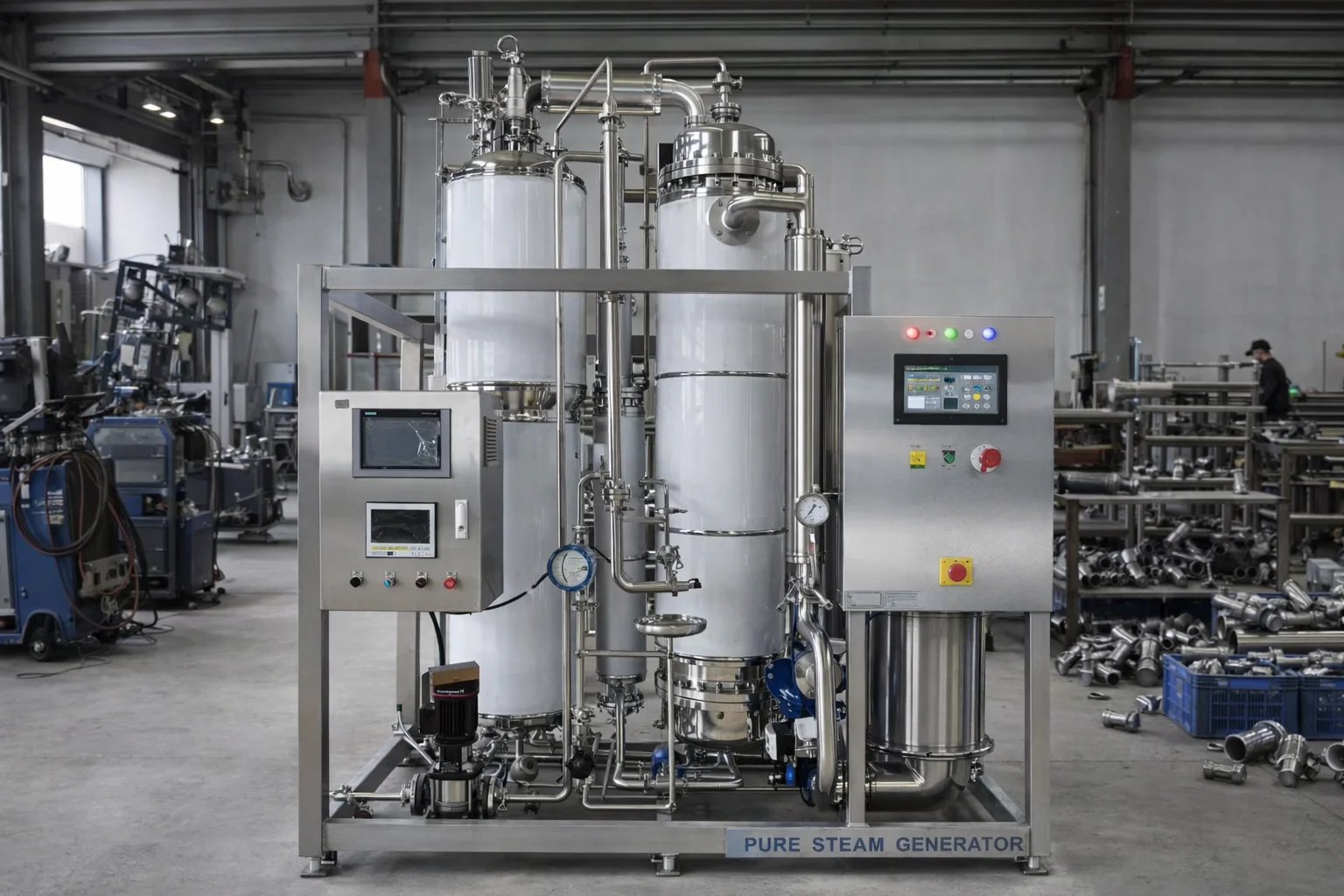

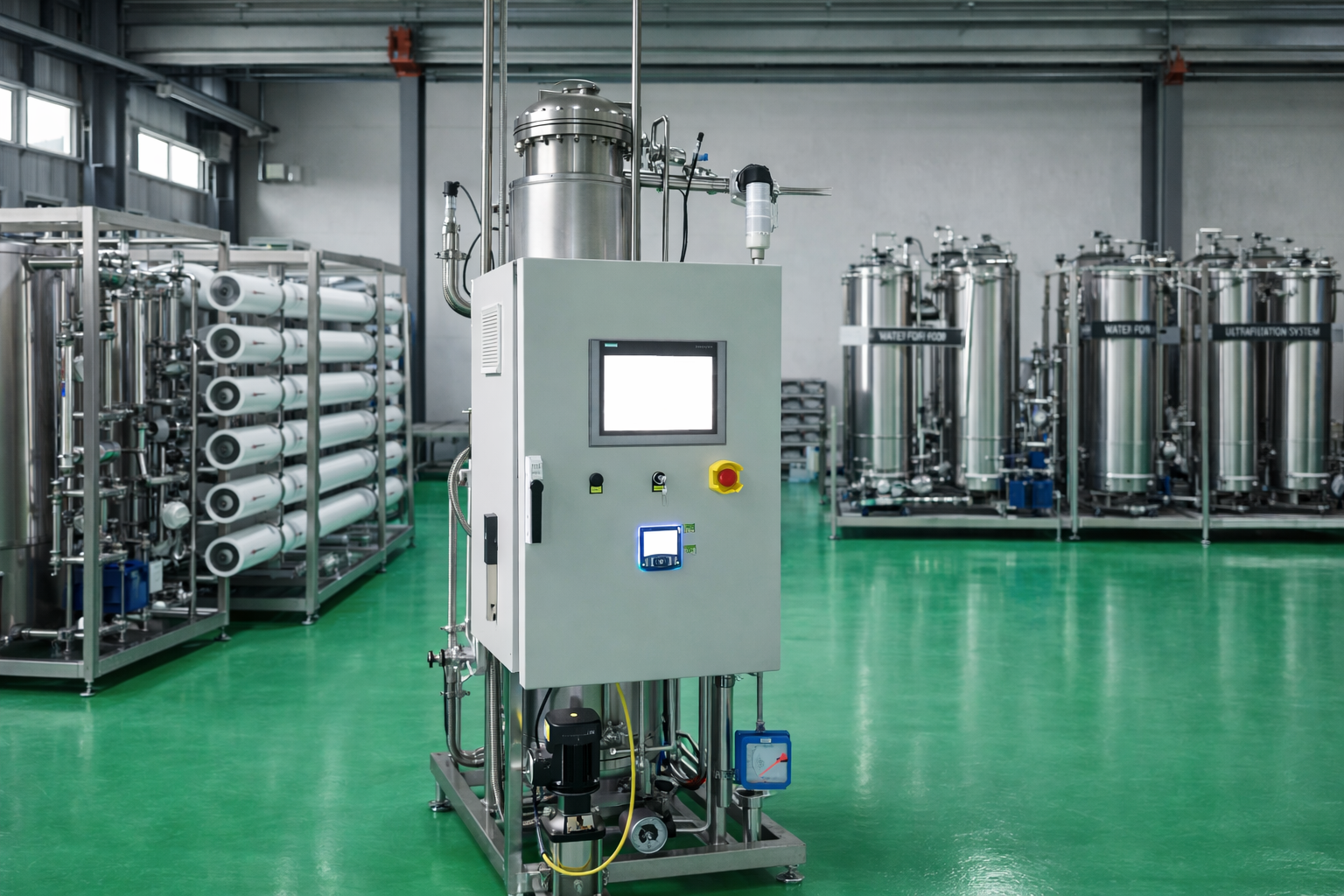

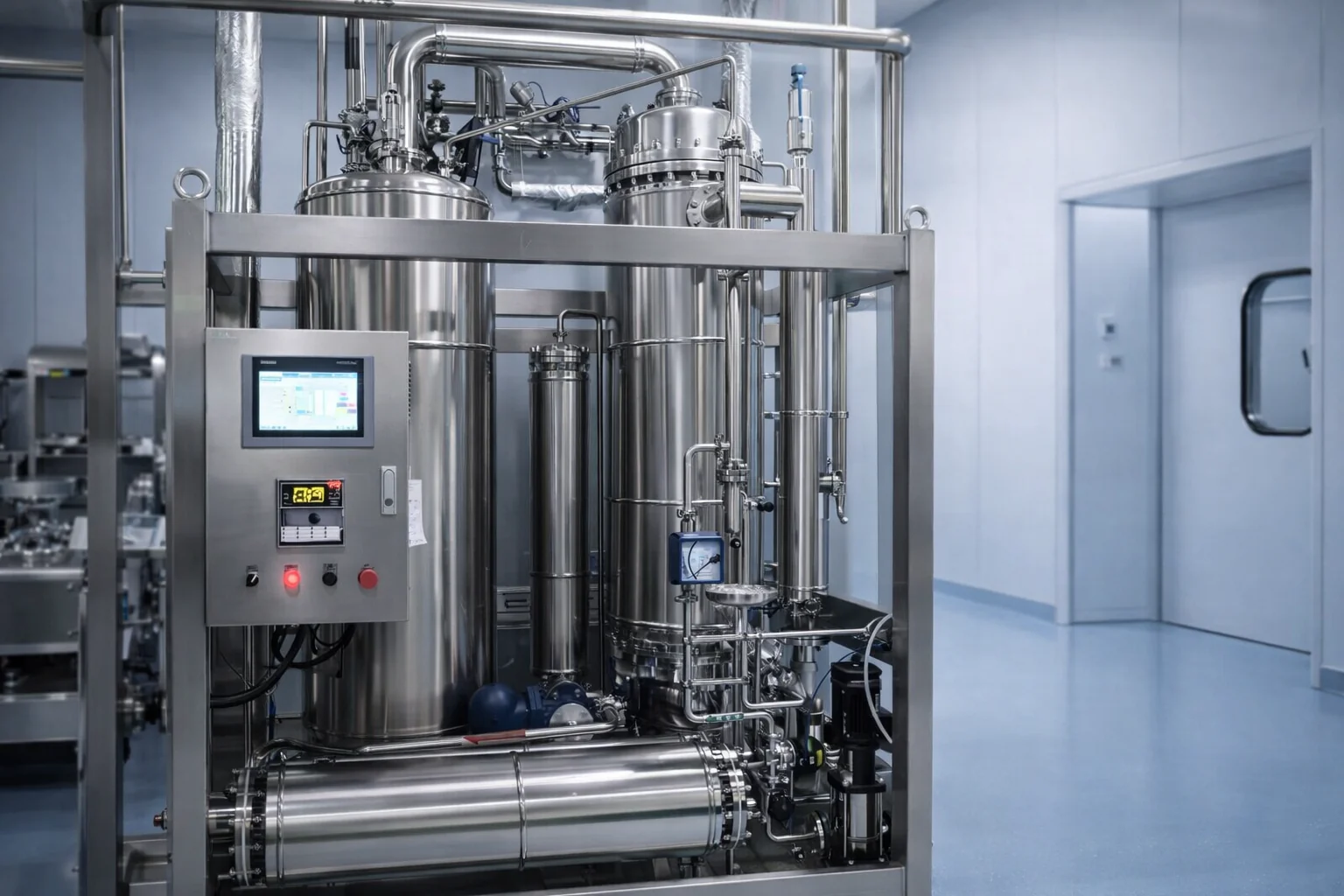

Pure Steam Generator
♦ Main Application:
Pharmaceutical pure steam generator engineered for SIP sterilization and critical processes, ensuring consistent steam quality and full compliance with GMP, USP, and EN285 requirements.
Pure Steam Generator (PSG)
A Pure Steam Generator is a critical clean utility system used to produce high-purity, pyrogen-free pure steam for sterilization and sanitation applications in pharmaceutical, biotechnology, vaccine, healthcare, and laboratory environments.
Pure steam is widely used for SIP sterilization of tanks, piping systems, filtration units, autoclaves, process equipment, and direct product-contact applications where industrial steam cannot meet hygienic requirements.
What Is a Pure Steam Generator?
A Pure Steam Generator converts purified water or WFI into high-purity steam using clean energy transfer technology. Unlike industrial steam boilers, the PSG prevents contamination from boiler chemicals, corrosion products, and dissolved solids.
The generated steam is separated through a high-efficiency steam separator to remove entrained droplets and ensure stable pure steam quality.
- Feed Water Pump
- Evaporator
- Steam Separator
- Heat Exchanger
- Instrumentation Package
- PLC Control System
- Condensate Recovery System
- Sanitary Piping
Technical Specifications
Pure Steam Quality
| Parameter | Typical Value |
|---|---|
| Conductivity | Meets WFI Feed Water Standard |
| Endotoxin | ≤ 0.25 EU/ml |
| Pyrogen | Free |
| Non-Condensable Gas | EN285 Compliant |
| Dryness Fraction | ≥ 95% |
| Condensate Quality | WFI Quality |
| Steam Purity | Pure Steam Grade |
| Compliance | GMP / FDA / USP / EP / EN285 |
PSG Capacity Models
| Model | Pure Steam Output |
|---|---|
| PSG-15 | 15 kg/h |
| PSG-50 | 50 kg/h |
| PSG-100 | 100 kg/h |
| PSG-300 | 300 kg/h |
| PSG-500 | 500 kg/h |
| PSG-1000 | 1000 kg/h |
| PSG-2000 | 2000 kg/h |
| PSG-3000 | 3000 kg/h |
Features & Advantages
Production Process
The separator removes entrained droplets and impurities to ensure the final steam meets pure steam quality requirements.
Why Choose CHONGYANG WATER?
- GMP-compliant design
- SS316L electropolished construction
- Orbital automatic welding
- PLC automatic control
- FAT / SAT support
- IQ / OQ / PQ documentation support
- Customized engineering solutions
- Global installation guidance
- Competitive pricing
- Long-term technical support
Looking for a Reliable Pure Steam Generator?
CHONGYANG WATER provides customized Pure Steam Generators from 15 kg/h to 3000 kg/h for pharmaceutical and biotechnology applications.
Our engineering team can provide customized process design, steam consumption calculation, utility requirement analysis, P&ID drawings, layout drawings, technical proposals, and competitive quotations.
