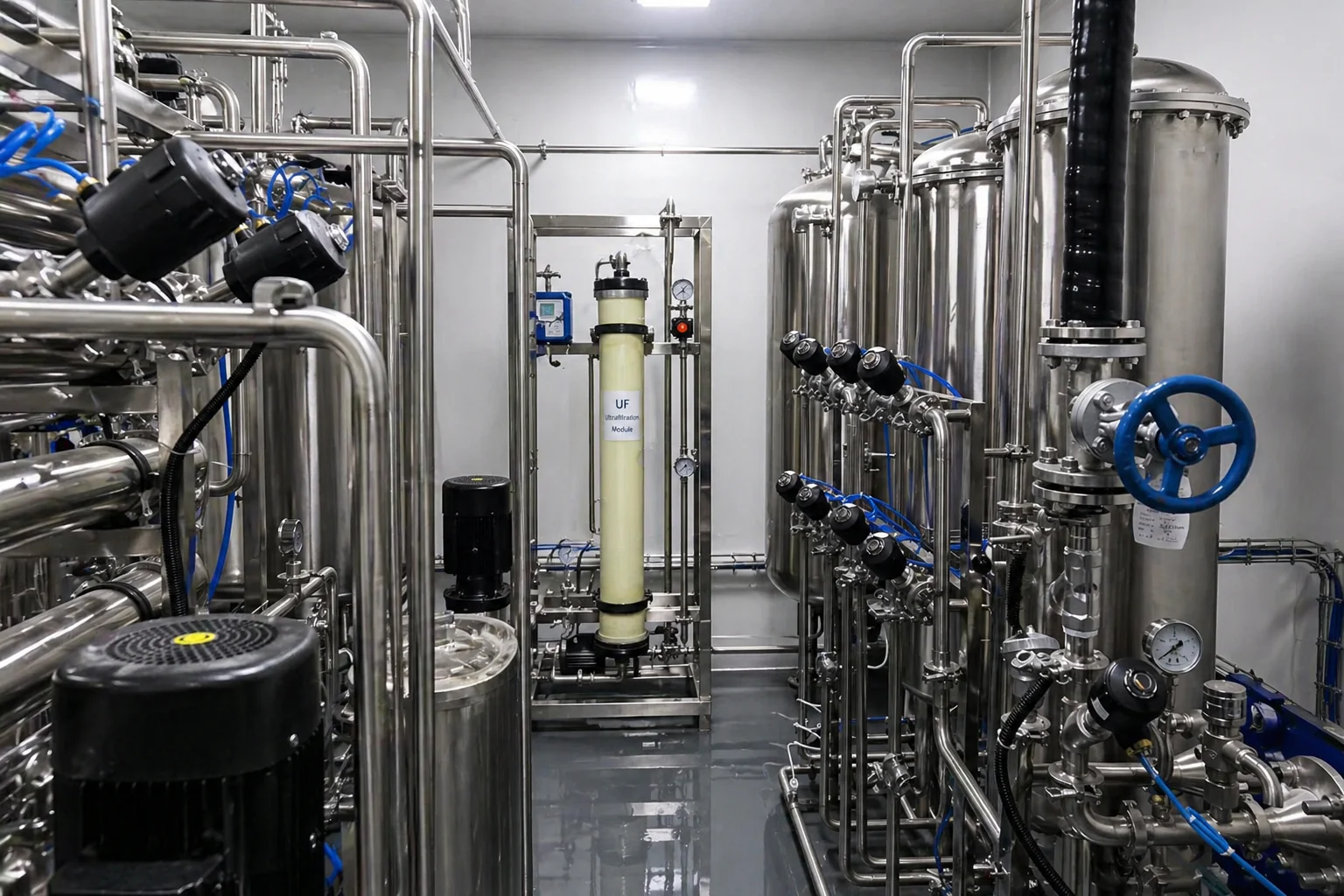

Membrane-Based WFI System
♦ Main Application:
Membrane-based WFI system using advanced RO, EDI and ultrafiltration technologies to produce high-purity Water for Injection compliant with GMP and pharmacopoeia standards.

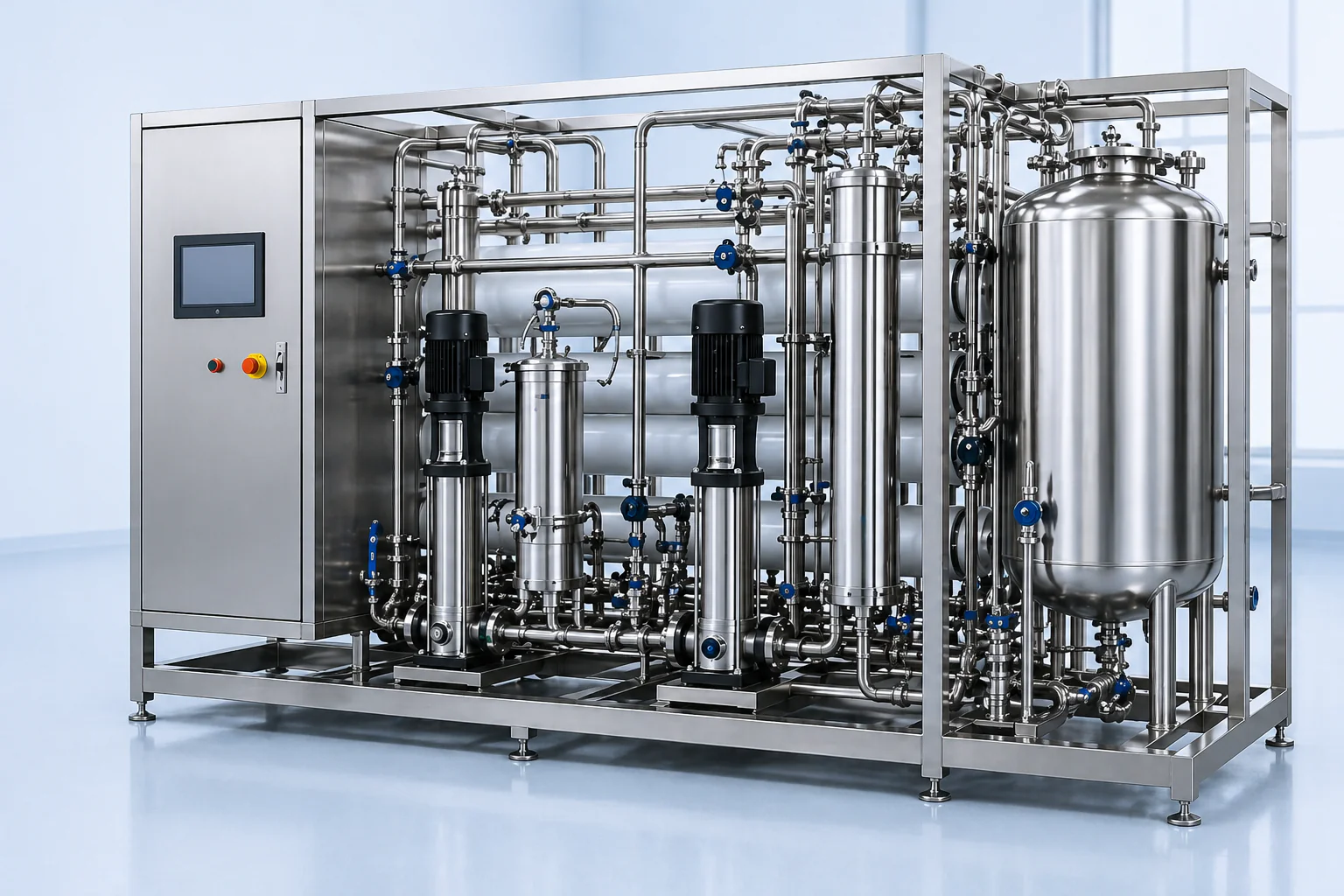

Membrane-Based WFI System
A Membrane-Based WFI System is an advanced water treatment solution designed to produce Water for Injection using membrane technologies instead of traditional thermal distillation.
By combining RO, EDI, UF, and advanced sanitization technologies, the system generates high-purity WFI while reducing energy consumption and operating costs.
What Is a Membrane-Based WFI System?
A Membrane-Based WFI System is a non-distillation WFI generation technology that uses multiple membrane barriers and purification stages to achieve Water for Injection quality.
The combination of RO, EDI, UV oxidation, and UF removes dissolved salts, organic contaminants, bacteria, endotoxins, pyrogens, and particulates.
- Pretreatment System
- Double Pass Reverse Osmosis
- Electro Deionization

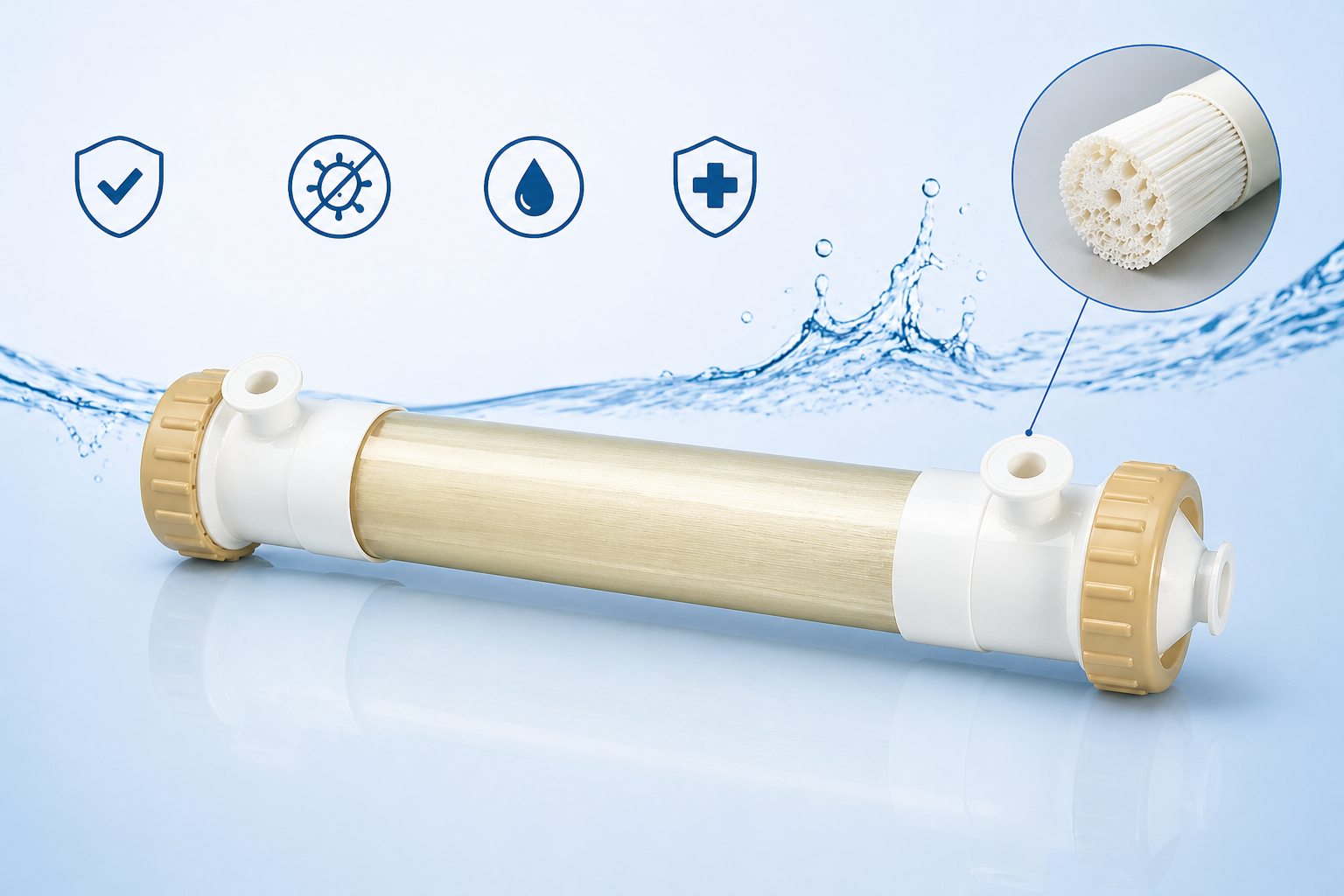

- Ultrafiltration
- UV Oxidation Unit
- WFI Storage Tank
- WFI Distribution Loop
- Online Conductivity & TOC Monitoring
- PLC Automation System
Technical Specifications
WFI Water Quality
| Parameter | Typical Value |
|---|---|
| Conductivity (25°C) | ≤ 1.3 μS/cm |
| TOC | ≤ 500 ppb |
| Endotoxin | ≤ 0.25 EU/ml |
| Bacterial Control | Pharmacopoeia Compliant |
| Pyrogen Removal | Through UF Barrier |
| Water Quality | WFI Grade |
| Compliance | USP / EP / GMP |
System Specifications
| Parameter | Specification |
|---|---|
| Capacity Range | 500 L/H – 20,000 L/H |
| Feed Water | Potable Water / Purified Water |
| Pretreatment | MMF + ACF + Softener |
| RO Configuration | Double Pass RO |
| EDI Module | Continuous Deionization |
| UF Membrane | Endotoxin Retention UF |
| UV Unit | 185 / 254 nm |
| Storage Tank | SS316L |
| Distribution Loop | SS316L Electropolished |
| Control System | PLC + HMI |
Features & Advantages
Application Industries

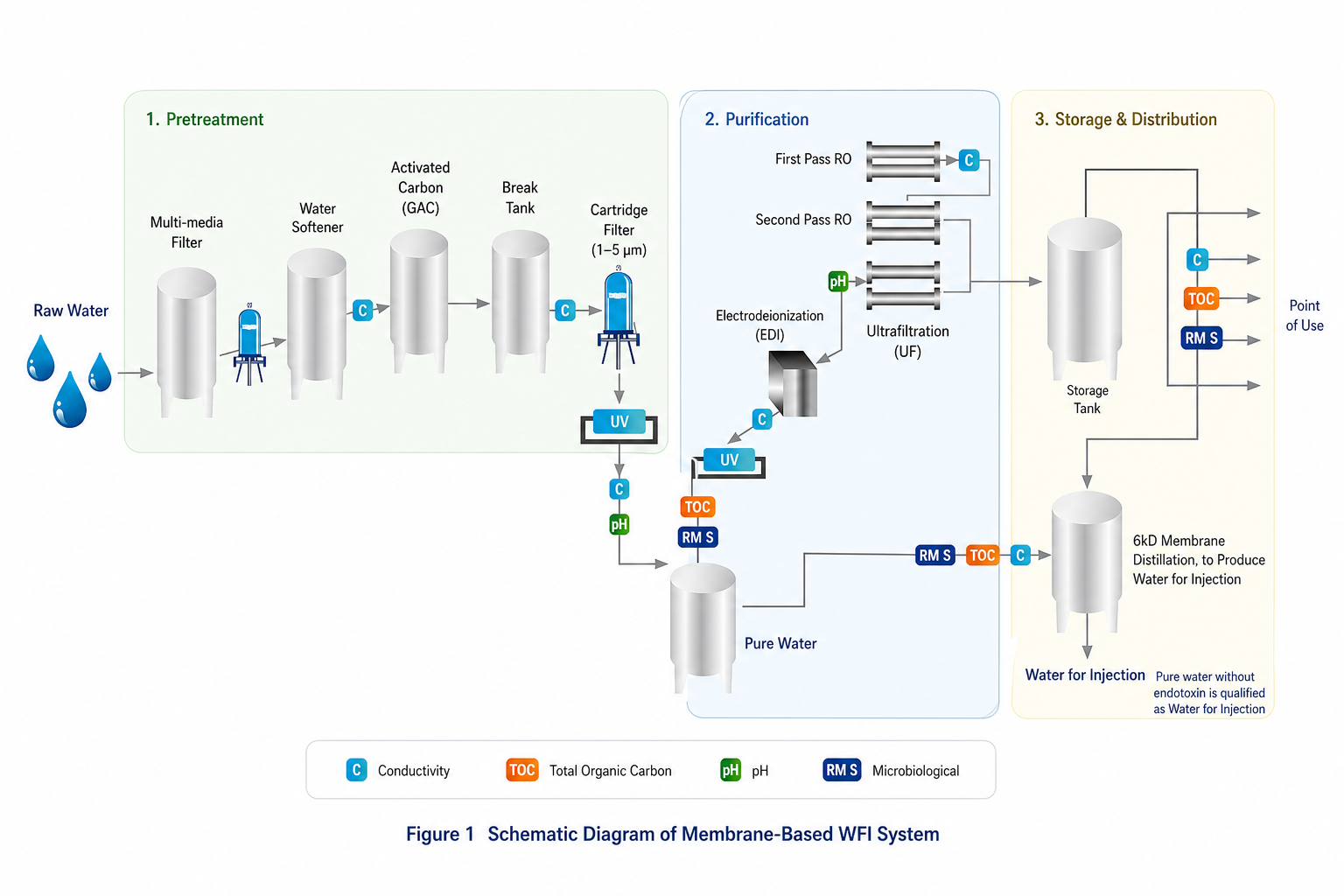

Production Process
This multi-barrier purification strategy ensures consistent WFI quality while maintaining high operational efficiency.
Optional Configurations
- Double Pass RO
- Triple Pass RO
- EDI Polishing System
- Endotoxin UF Module
- Online TOC Analyzer
- Online Conductivity Monitoring
- WFI Storage Tank
- WFI Distribution System
- Hot Water Sanitization
- Ozone Sanitization
- SCADA Monitoring
- 21 CFR Part 11 Compliance
- Remote Monitoring
Looking for an Energy-Efficient WFI Generation Solution?
CHONGYANG WATER provides customized Membrane-Based WFI Systems ranging from 500 L/H to 20,000 L/H and beyond.
Our engineering team can provide process design, water quality analysis, utility consumption calculation, P&ID drawings, layout drawings, technical proposals, and competitive quotations.
