Water Treatment Auxiliary
♦ Main Application:
Complete auxiliary equipment solution for water treatment systems, providing filtration, storage, and flow control to ensure system compatibility, stability, and long-term reliability.
Water Treatment Auxiliary Equipment System
A Water Treatment Auxiliary Equipment System consists of the critical supporting equipment used in purified water systems, WFI systems, ultrapure water systems, reverse osmosis plants, food and beverage water treatment systems, cosmetic water purification systems, laboratory water systems, and industrial water treatment projects.
CHONGYANG WATER manufactures stainless steel auxiliary equipment including storage tanks, stainless steel filters, RO membrane housings, automatic sanitary diaphragm valves, sterile valves, and custom sanitary stainless steel fabrications.
What Is a Water Treatment Auxiliary Equipment System?
A Water Treatment Auxiliary Equipment System refers to the supporting vessels, filtration units, valves, membrane housings, storage tanks, and distribution components that ensure the safe, reliable, and efficient operation of a water treatment plant.
- Water storage and distribution
- Pretreatment filtration
- Fine filtration
- Membrane protection
- Sterile flow control
- Process monitoring
- Hygienic water handling
Main Auxiliary Equipment
Used for purified water storage and continuous circulation systems.
SS316L tank with electropolished internal surfaces for high-purity water storage.
Removes suspended solids, turbidity, sediment, and particles.
Designed for 10″, 20″, 30″, and 40″ cartridge filters.
Sanitary membrane pressure vessels for 4040 and 8040 RO membranes.
Pneumatic or electric sanitary diaphragm valves for automatic process control.
Technical Specifications

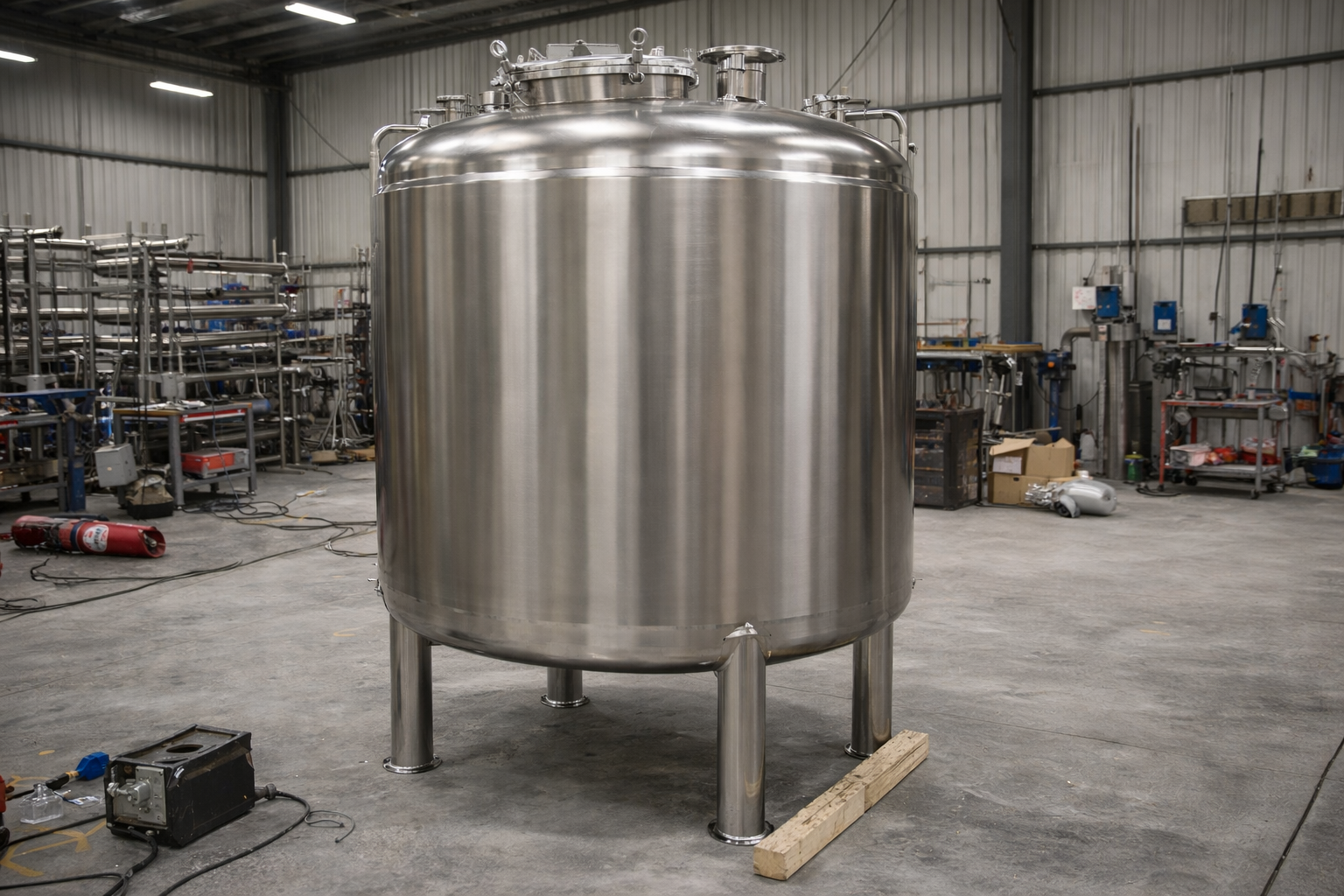

Purified Water & WFI Storage Tanks
| Parameter | Specification |
|---|---|
| Capacity | 100 L – 50,000 L |
| Material | SS316L |
| Surface Finish | Ra ≤ 0.6 μm |
| Internal Finish | Electropolished |
| Insulation | Optional |
| Spray Ball | Available |
| Vent Filter | 0.2 μm |
| Heating Jacket | Optional |

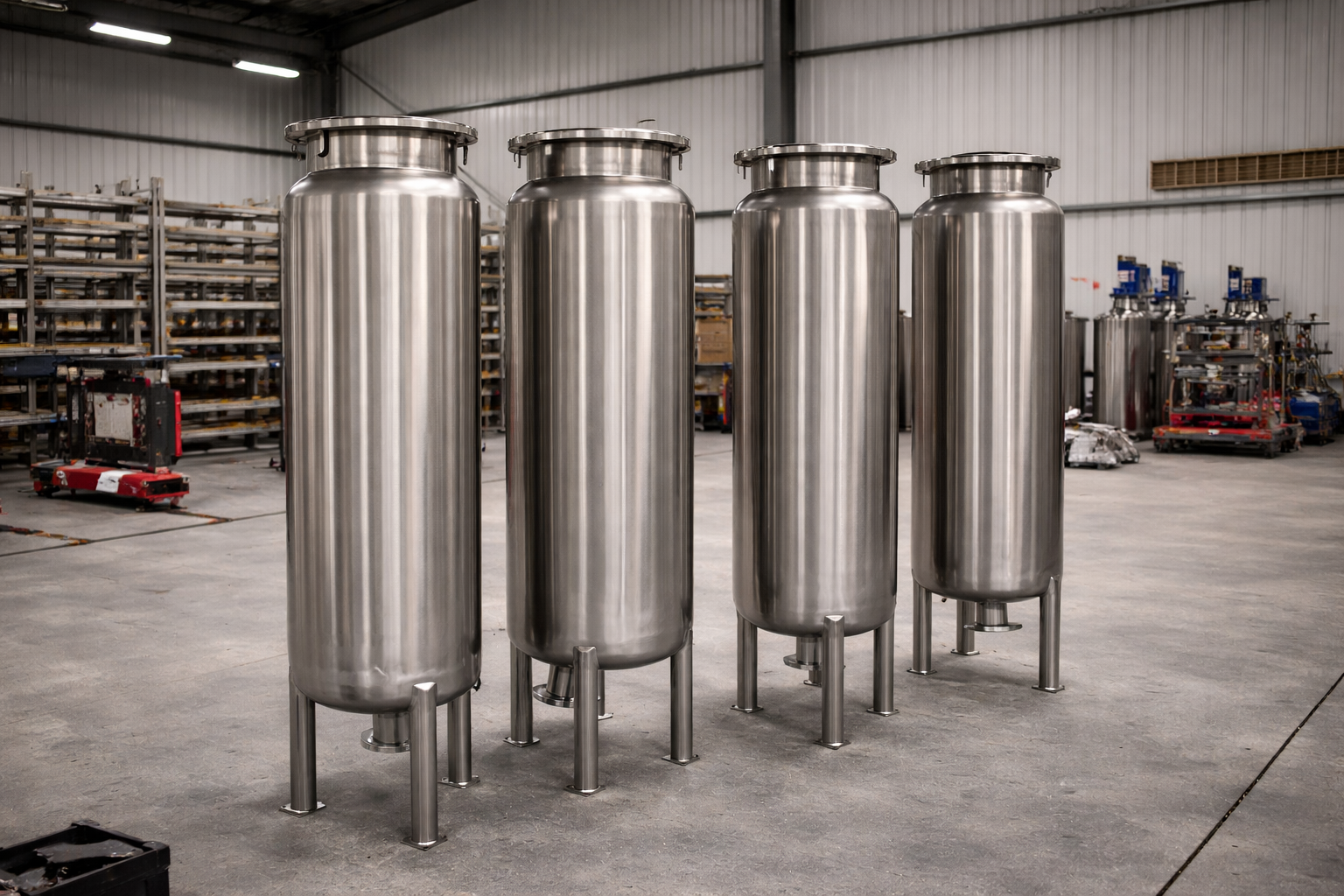

Stainless Steel Multimedia Filters
| Parameter | Specification |
|---|---|
| Capacity | 1 – 200 m³/h |
| Material | SS304 / SS316L |
| Media | Quartz Sand |
| Operating Pressure | 2 – 10 Bar |
| Valve Type | Manual / Automatic |
Stainless Steel Cartridge Filter Housings
| Parameter | Specification |
|---|---|
| Cartridge Length | 10″, 20″, 30″, 40″ |
| Cartridge Quantity | 1 – 160 |
| Material | SS304 / SS316L |
| Connection | Tri-Clamp / Flange |
| Surface Finish | Mirror Polished |
Stainless Steel RO Membrane Housings
| Parameter | Specification |
|---|---|
| Membrane Size | 4040 / 8040 |
| Material | SS304 / SS316L |
| Pressure Rating | Customized |
| Element Quantity | 1 – 8 |
| Surface Finish | Polished |
Automatic Sanitary Valves
| Parameter | Specification |
|---|---|
| Material | SS316L |
| Size Range | DN15 – DN150 |
| Actuator | Pneumatic / Electric |
| Connection Type | Clamp / Weld |
| Surface Finish | Ra ≤ 0.6 μm |
Features & Advantages
Application Industries
Production Process
This manufacturing process ensures high sanitary standards, superior surface quality, and reliable equipment performance.
Optional Configurations
Why Choose CHONGYANG WATER?
- Complete auxiliary equipment product line
- SS316L hygienic manufacturing
- Automatic orbital welding
- Electropolishing capability
- GMP-compatible fabrication
- Customized engineering solutions
- Factory direct pricing
- FAT inspection support
- Global export experience
- Long-term technical support
Looking for High-Quality Water Treatment Auxiliary Equipment?
CHONGYANG WATER manufactures and supplies purified water storage tanks, WFI storage tanks, stainless steel multimedia filters, stainless steel cartridge filter housings, stainless steel RO membrane housings, automatic sanitary diaphragm valves, sterile valves, distribution loop components, and custom stainless steel fabrications.
Our engineering team can provide equipment selection support, technical specifications, 2D and 3D drawings, custom fabrication services, OEM manufacturing, and competitive quotations.
