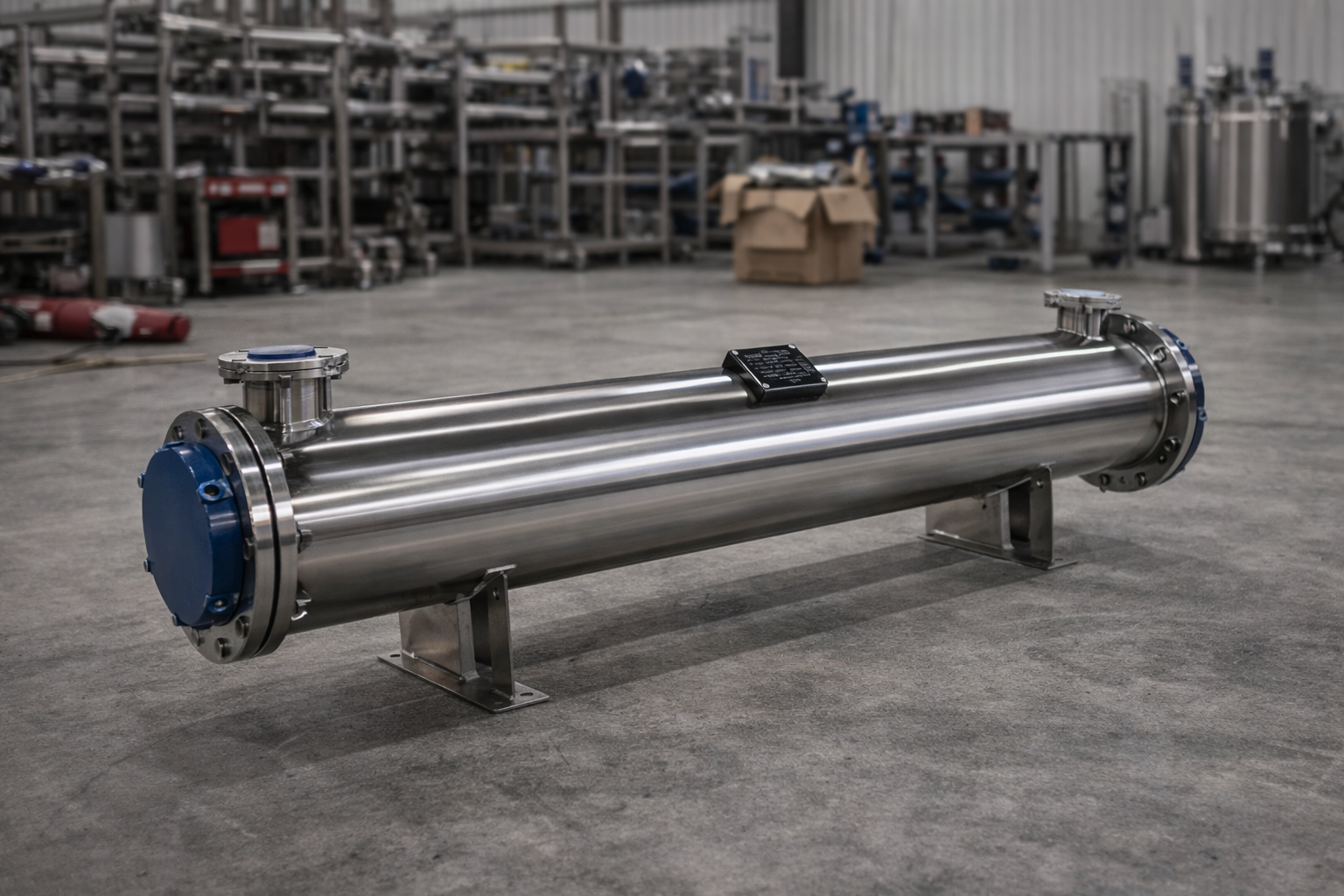

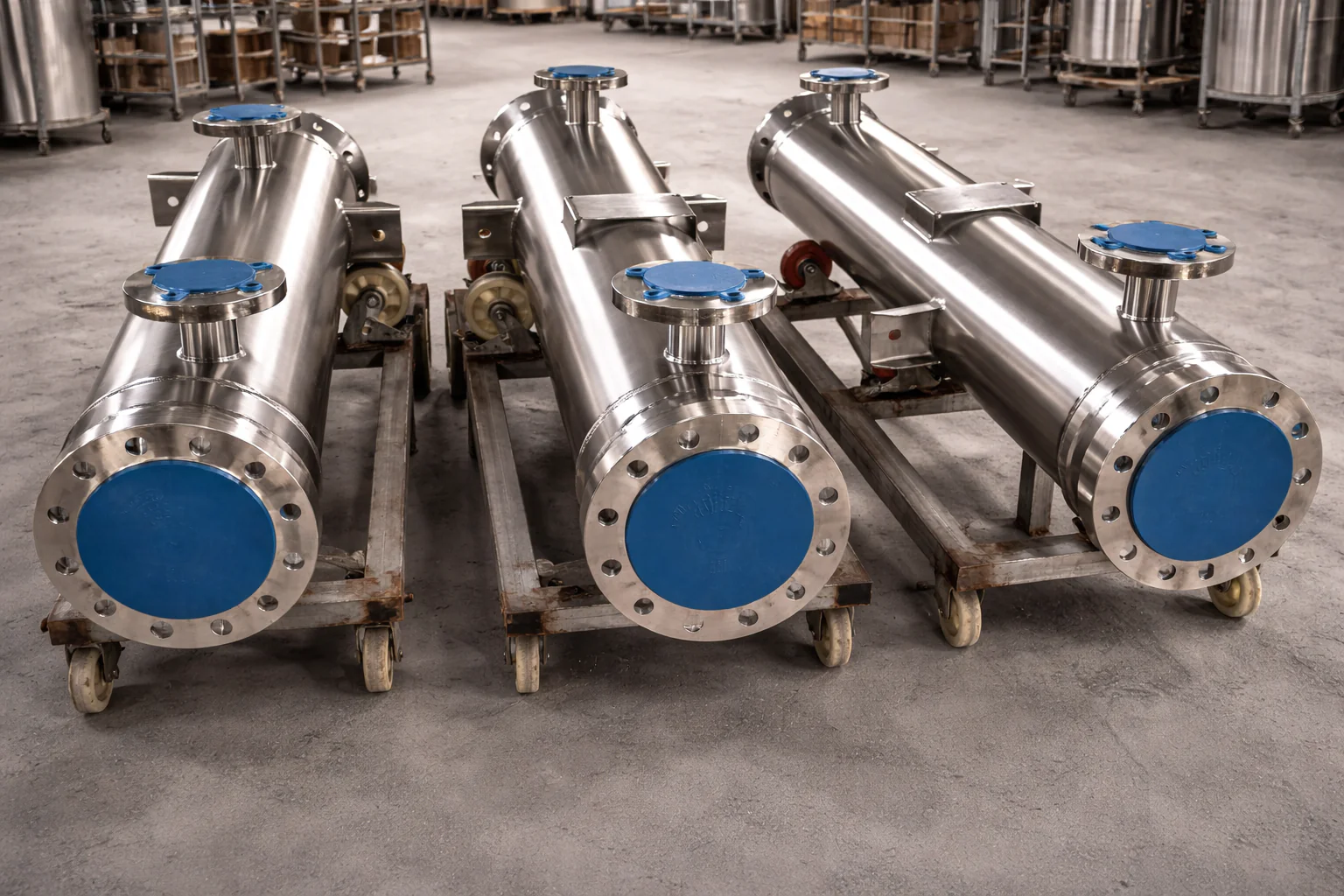

Sanitary Heating Exchanger
♦ Main Application:
Sanitary heat exchanger with double tube sheet design, ensuring efficient heat transfer and complete prevention of cross-contamination for pharmaceutical applications.
Sanitary Heat Exchanger
A Sanitary Heat Exchanger is a critical thermal transfer device used in high-purity process systems where hygienic design, cleanability, and product safety are essential.
CHONGYANG WATER manufactures plate heat exchangers, double-tube sheet shell & tube heat exchangers, tubular heat exchangers, and customized hygienic thermal transfer equipment for purified water, WFI, pure steam, food, beverage, biotechnology, cosmetic, and laboratory applications.
What Is a Sanitary Heat Exchanger?
A sanitary heat exchanger is a specially designed heat transfer unit manufactured from hygienic stainless steel materials and engineered for sanitary processing requirements.
- Hygienic SS316L construction
- Smooth internal surfaces
- Dead-leg-free design
- CIP and SIP compatibility
- Electropolished surfaces
- FDA-compliant gasket materials
- Easy maintenance and inspection
Main Applications
Technical Specifications
Sanitary Plate Heat Exchanger
| Parameter | Specification |
|---|---|
| Capacity | 0.5 – 500 m³/h |
| Material | SS316L |
| Design Pressure | Up to 16 Bar |
| Design Temperature | Up to 180°C |
| Surface Finish | Ra ≤ 0.6 μm |
| Gasket Type | FDA Grade |

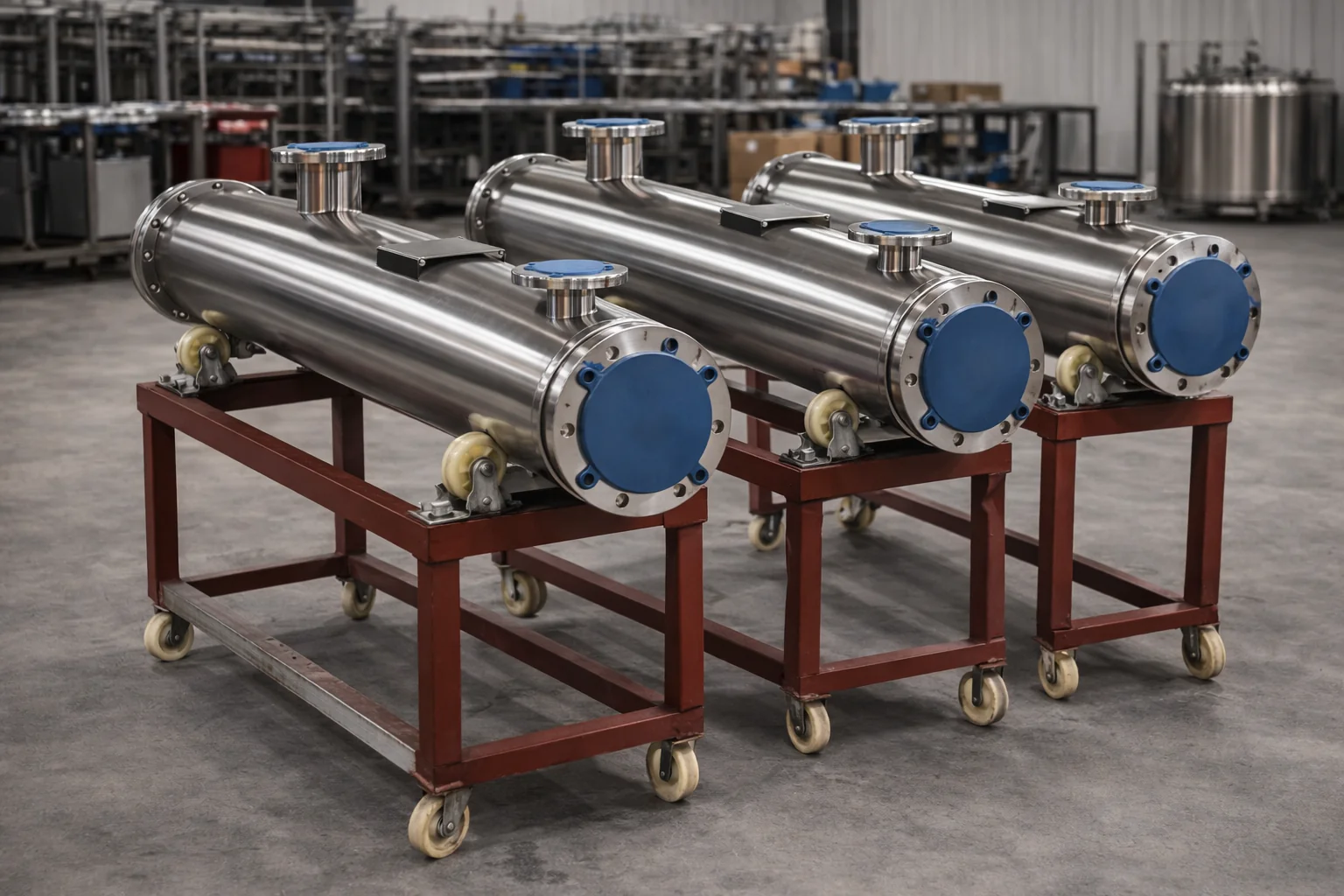

Double Tube Sheet Shell & Tube Heat Exchanger
| Parameter | Specification |
|---|---|
| Capacity | Customized |
| Material | SS316L |
| Tube Sheet Design | Double Tube Sheet |
| Pressure Rating | Customized |
| Temperature Range | Up to 250°C |
| Surface Finish | Electropolished |
Sanitary Tubular Heat Exchanger
| Parameter | Specification |
|---|---|
| Capacity | Customized |
| Material | SS316L |
| Surface Finish | Ra ≤ 0.6 μm |
| CIP Compatible | Yes |
| SIP Compatible | Yes |
| Operating Pressure | Customized |

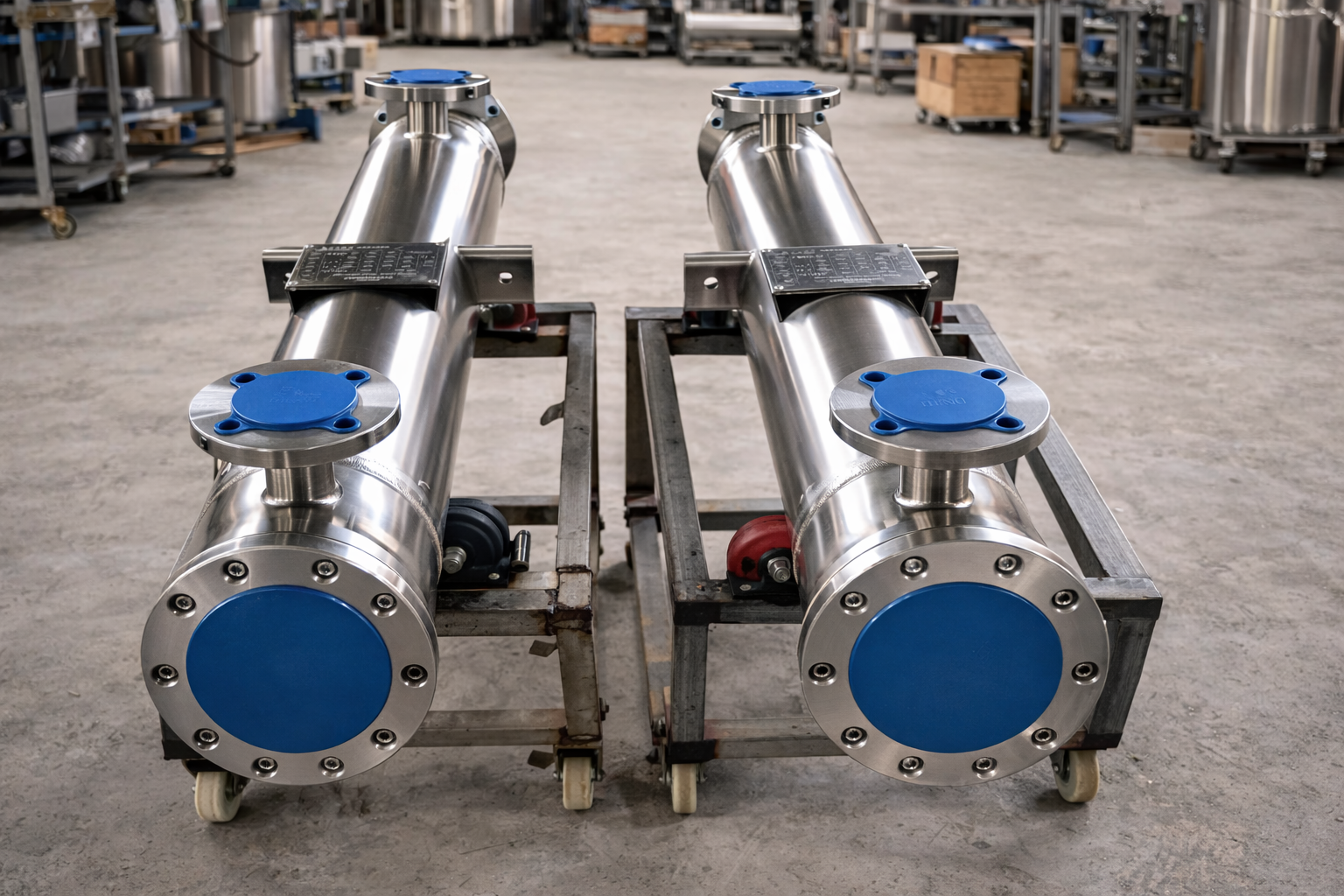

Purified Water / WFI Heat Exchanger
| Parameter | Specification |
|---|---|
| Material | SS316L |
| Surface Finish | Electropolished / Ra ≤ 0.4–0.6 μm |
| Temperature Range | 20–90°C / Customized |
| Application | PW Loop / WFI Loop |
| Sanitization | Hot Water / SIP |
| GMP Compatible | Yes |
Features & Advantages
Application Industries
Production Process
The sanitary heat exchanger manufacturing process is designed to ensure hygienic construction, accurate heat transfer performance, and reliable long-term operation.
Optional Configurations
Why Choose CHONGYANG WATER?
- SS316L hygienic manufacturing
- Electropolishing capability
- GMP-compatible design
- Advanced welding technology
- Customized engineering solutions
- Factory direct manufacturing
- FAT inspection support
- Global export experience
- Technical documentation support
- Long-term technical service
Looking for a Reliable Sanitary Heat Exchanger?
CHONGYANG WATER supplies sanitary heat exchangers for purified water systems, WFI systems, food processing, biotechnology, cosmetic manufacturing, and industrial water treatment applications.
Our engineering team can provide heat load calculations, equipment selection, process design assistance, technical specifications, P&ID drawings, 2D and 3D drawings, customized manufacturing, and competitive quotations.
