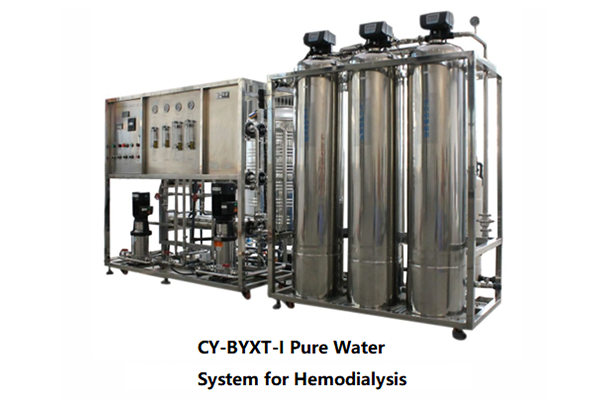

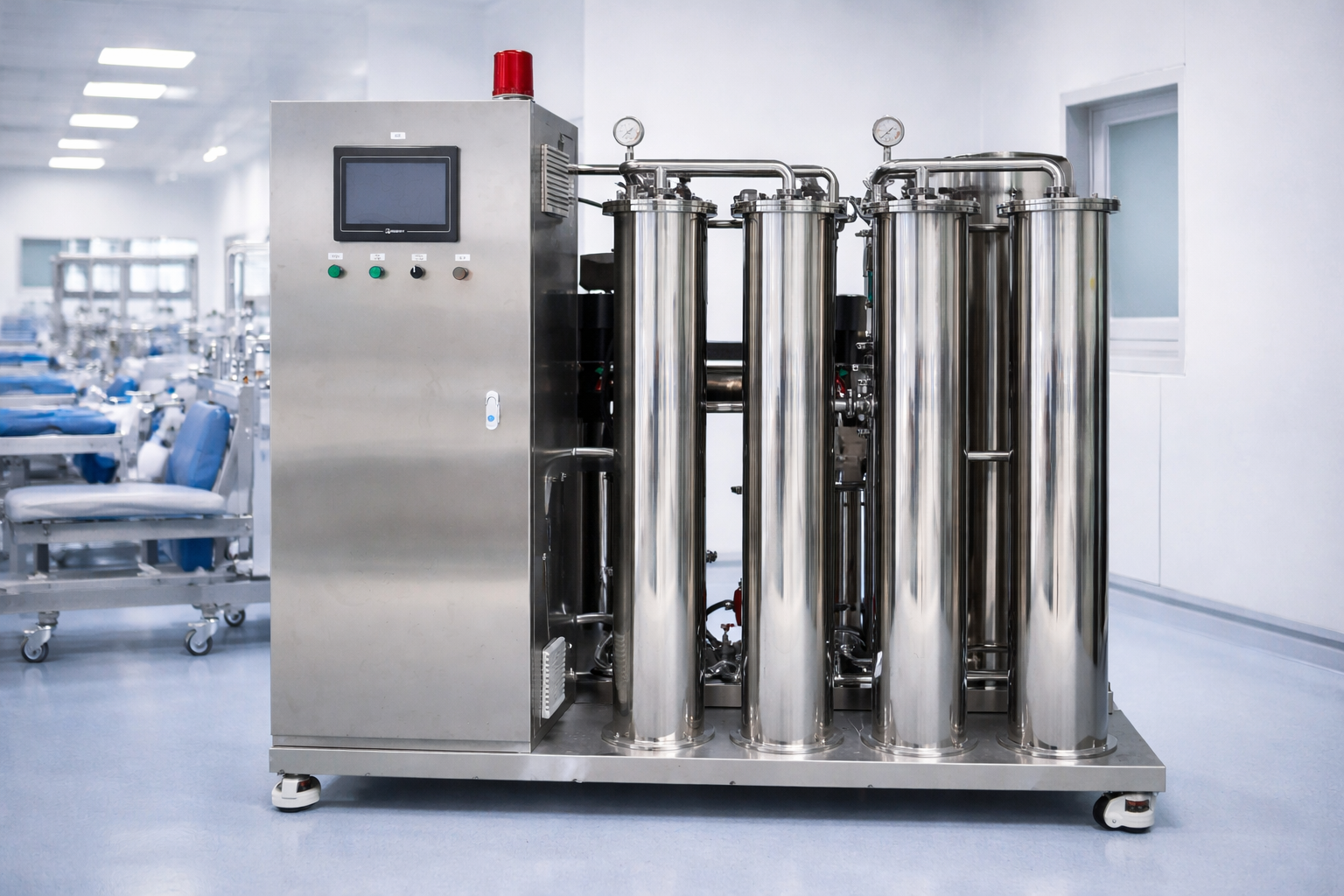

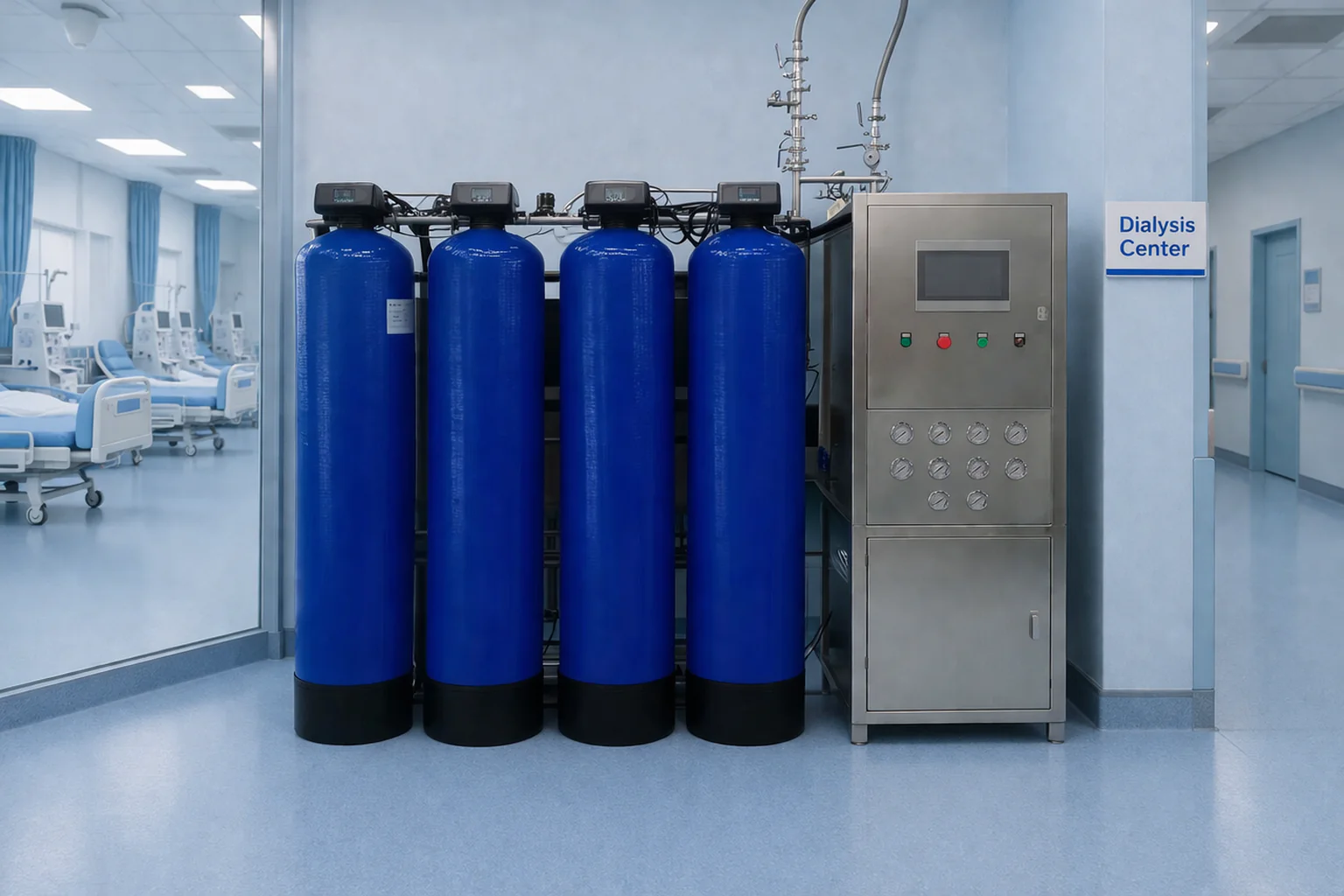

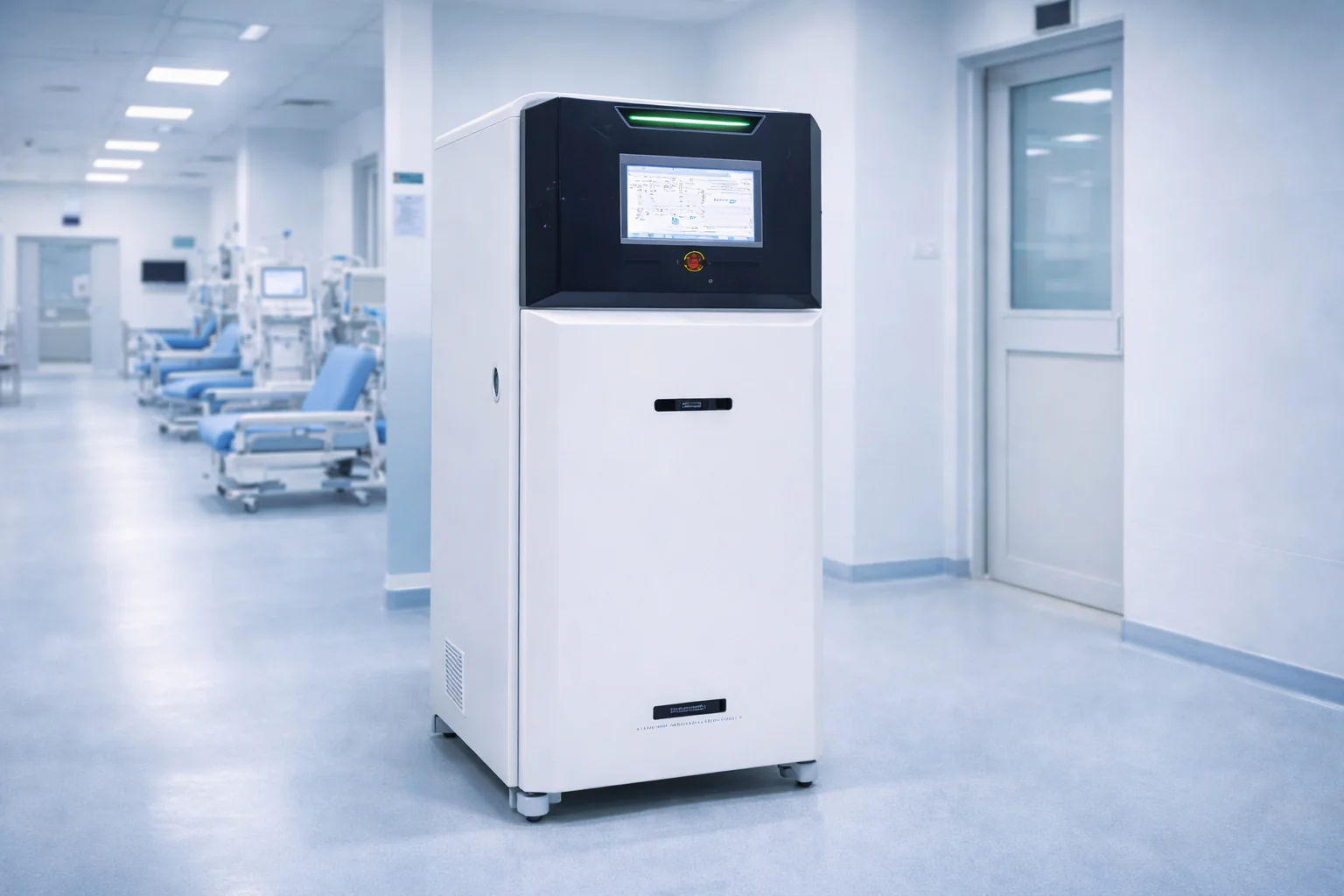

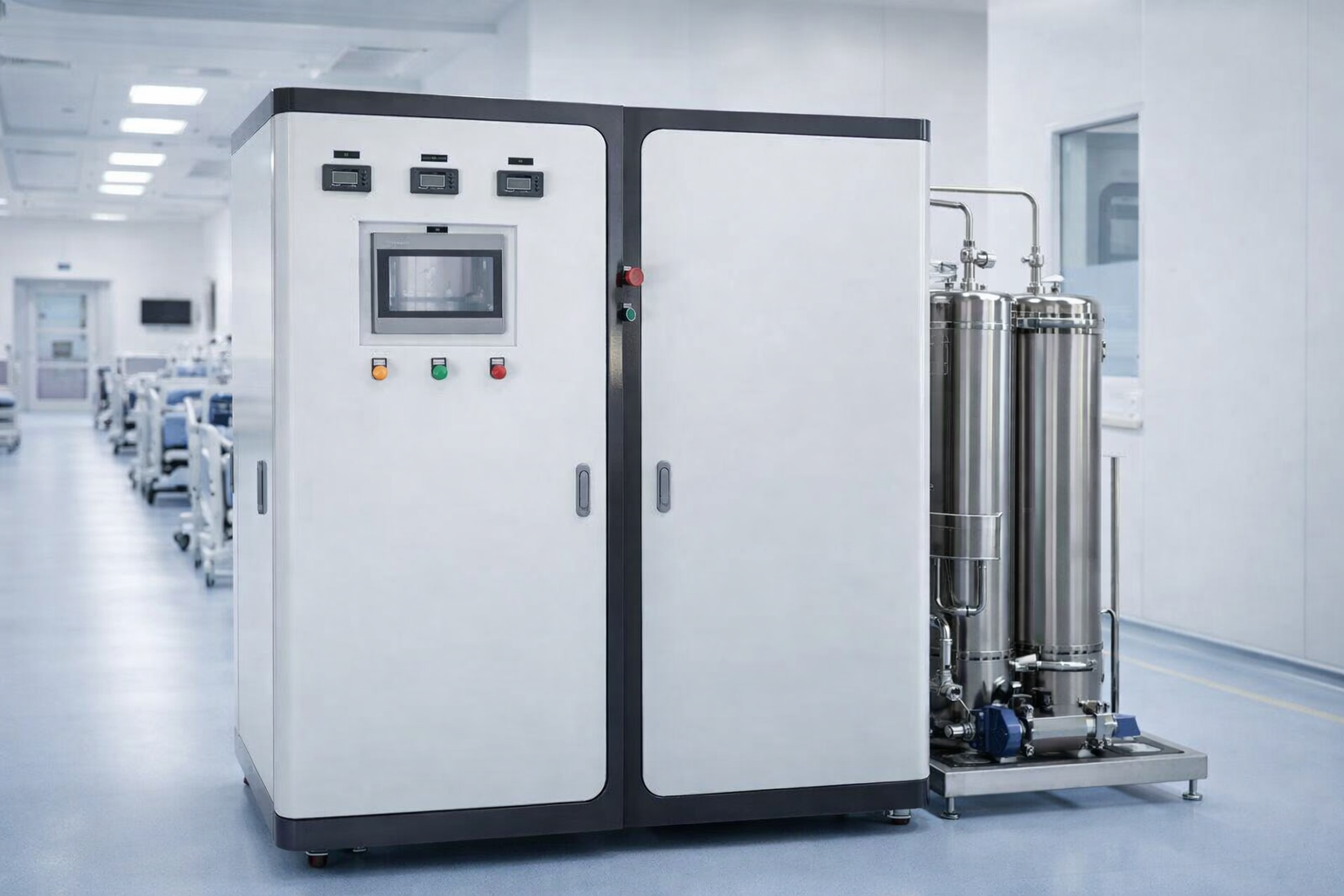

Dialysis Reverse Osmosis System
♦ Main Application:
Medical-grade dialysis water system engineered for continuous and reliable ultrapure water supply, ensuring patient safety and strict compliance with AAMI and ISO standards.
Hemodialysis Water Treatment System
A Hemodialysis Water Treatment System is a critical medical water purification solution designed to produce ultra-pure water for hemodialysis procedures.
Modern dialysis water systems use pretreatment, RO, endotoxin control, UV sterilization, and distribution loops to ensure safe and stable dialysis-grade water for hospitals, dialysis centers, kidney clinics, and healthcare facilities.
What Is a Hemodialysis Water Treatment System?
A Hemodialysis Water Treatment System converts municipal water or well water into dialysis-grade water suitable for hemodialysis machines and dialysis concentrate preparation.
- Raw Water Feed System
- Multi-Media Filter
- Activated Carbon Filter
- Water Softener
- Reverse Osmosis System
- UV Sterilization Unit
- Endotoxin Retention Filter
- Dialysis Water Storage Tank
- Distribution Loop System
- PLC Control System
Technical Specifications
Dialysis Water Quality
| Parameter | Typical Value |
|---|---|
| Conductivity | ≤ 10 μS/cm |
| TDS | ≤ 10 ppm |
| Bacteria | < 100 CFU/ml |
| Endotoxin | < 0.25 EU/ml |
| Chlorine / Chloramine | Not Detectable |
| Hardness | < 1 ppm |
| Compliance | AAMI / ISO 23500 |
System Specifications
| Parameter | Specification |
|---|---|
| Capacity Range | 250 L/H – 20,000 L/H |
| Feed Water Source | Municipal Water / Well Water |
| Pretreatment | MMF + ACF + Softener |
| RO Configuration | Single Pass / Double Pass |
| UV Sterilizer | 254 nm |
| Endotoxin Filter | Optional |
| Storage Tank Material | SS316L |
| Distribution Loop Material | SS316L / Medical Grade Piping |
| Control System | PLC + HMI |
| Sanitization | Heat / Chemical |
Features & Advantages
Application Industries
Production Process
The continuous circulation loop helps maintain dialysis water quality while minimizing microbial growth within the distribution network.
Why Choose CHONGYANG WATER?
- Advanced reverse osmosis technology
- SS316L hygienic construction
- Automated PLC control
- Reliable endotoxin control
- Customized capacity design
- FAT / SAT support
- Installation guidance
- Complete technical documentation
- Long-term technical service support
Looking for a Reliable Hemodialysis Water Treatment System?
CHONGYANG WATER provides complete hemodialysis water treatment solutions ranging from small clinic systems to large hospital dialysis water plants.
Our engineering team can provide customized process design, water quality evaluation, AAMI compliance support, P&ID drawings, layout drawings, technical proposals, and competitive quotations.
